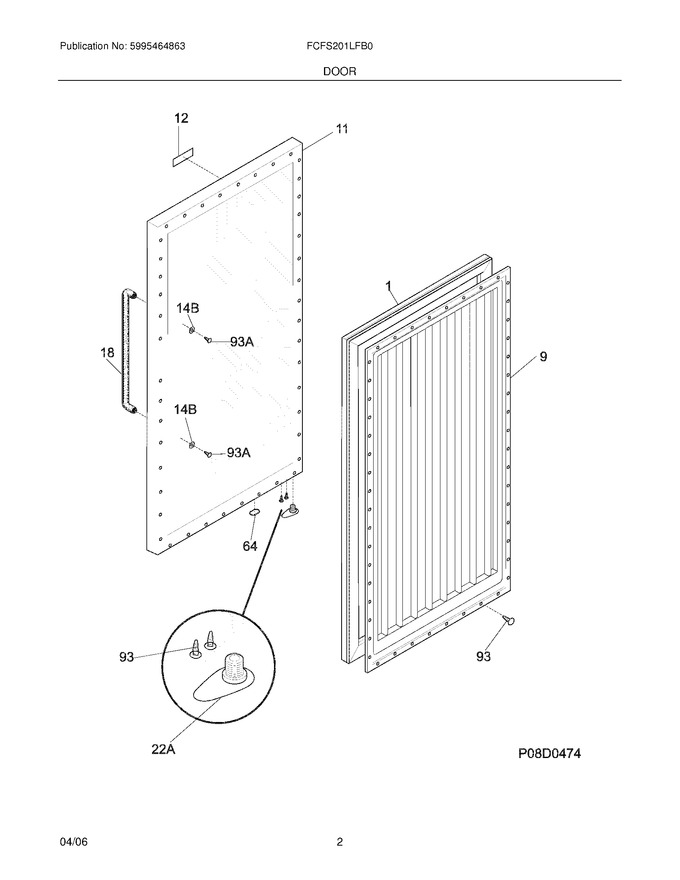

03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506124 | Gasket-door,black (Replaces: 216522318) |
|
Immediately | $ 204.56 | ||||
| 9 | 297071000 | Panel-inner Door,refr |
|
$ 200.57 | |||||
| 11 | 216450101 | Panel-outer Door |
|
- | |||||
| 12 | 297073400 | Nameplate,commercial ,stainless |
|
$ 124.03 | |||||
| 18 | 216714100 | Handle-door |
|
- | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base (Replaces: 216403701) |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 14B | 5303311368 | Washer, Flat |
|
- | |||||
| 22A | 216335400 | Bearing-hinge |
|
$ 67.73 | |||||
| 93A | 5303302760 | Screw,round Head Sems ,10-32 X 0.375 |
|
$ 8.72 | |||||
| NI | 216923003 | Plug Button,1/4`` ,grey |
|
$ 4.41 |
