SELECT A DIAGRAM

01 - Cover


03 - Door

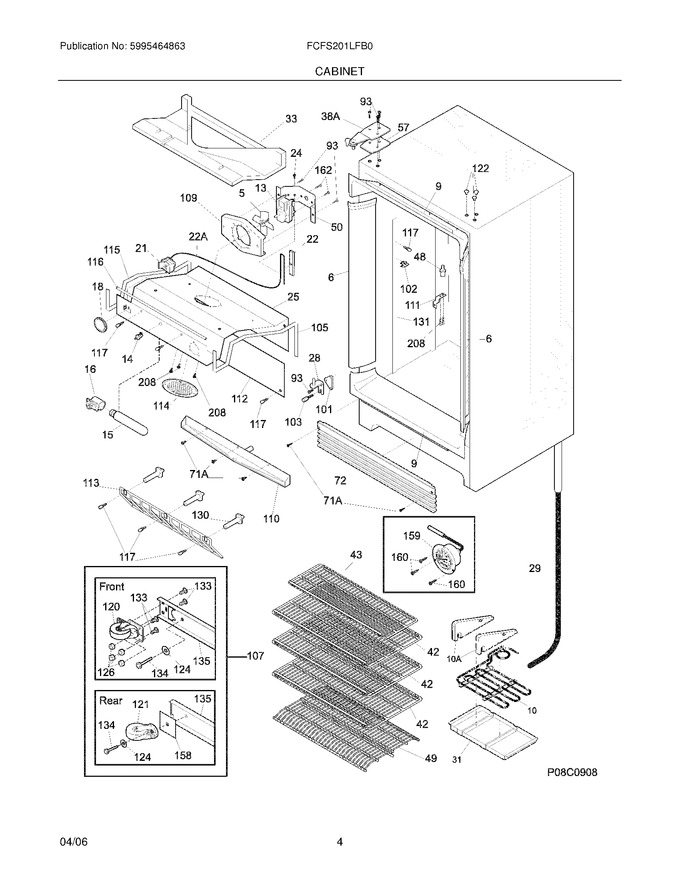

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	216604100		Breaker Kit W/corners		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
10	216999400		Tubing- Heater,formed				$ 29.10
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Light Bulb/lamp   (Replaces: 216518100)			Immediately	$ 73.06
16	297139500		Socket,light/lamp,25 W   (Replaces: 216817601)				$ 18.08
18	216591506		Knob,temp Control   (Replaces: 216591501)				$ 29.06
21	297216041		Control-temperature,nsf   (Replaces: 216579100)				$ 46.27
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216659103		Cover-evaporator		Appelez-nous	-
28	216335600		Hinge-bottom, Stepped Pin				$ 129.83
29	216361901		Hose-drain				$ 93.14
31	216732400		Pan-drain				$ 208.48
33	216680900		Duct-air		Appelez-nous	-
42	216384001		Shelf,wide ,(3) ,full		Appelez-nous	-
43	216386201		Shelf,half Width		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216331801		Trivet,wide				$ 57.23
50	08013207		Bracket Fan Motor				$ 12.92
57	216335500		Spacer-hinge, Top		Appelez-nous	-
72	297071200		Grille/kickplate				$ 284.34
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
101	216335700		Plate-hinge, Tapping		Appelez-nous	-
102	297121900		Support Shelf,adjustable   (Replaces: 216605300)			Immediately	$ 12.13
103	216336300		Standoff-base Panel				$ 71.51
105	216361100		Gasket-cover Evap, Rh		Appelez-nous	-
107	297085800		Castor Kit				$ 241.59
109	297014200		Venturi,blower				$ 56.44
110	216377000		Pan-drain, Condensate				$ 222.14
111	297066000		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain,condensate				$ 134.09
113	216383601		Grate-air Intake		Appelez-nous	-
114	297014300		Cover-blower				$ 56.70
115	216383700		Gasket-evap Cover, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
120	216658200		Roller-front,w/brake ,(2)				$ 320.93
121	216495200		Roller-rear,(2)		Appelez-nous	-
122	240494003		Plug,black   (Replaces: 297095301)				$ 18.20
124	216658500		Washer,flat ,5/16 ,front ,(2)		Appelez-nous	-
126	216658600		Nut,locking ,5/16-18 ,front ,(10)		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
131	216605200		Shelf-standard		Appelez-nous	-
133	216658400		Bolt,caster ,5/16 Sq. Neck ,front ,(8)		Appelez-nous	-
134	297084400		Bolt,castor ,5/16`` 18x1.625 ,rear		Appelez-nous	-
135	216658102		Support-casters,black				$ 209.48
158	297078600		Plate-spacer				$ 23.06
159	5304506337		Dial,thermometer   (Replaces: 297070200)				$ 174.95
160	297089700		Screw,6-32 X .375 ,ss ,thermo Dial		Appelez-nous	-
162	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
208	216504500		Screw, Ab, 8-18 X .500		Appelez-nous	-
10A	216933701		Bracket,drain Pan ,w/hole ,(2)				$ 15.88
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
38A	216365200		Door Closer		Appelez-nous	-
71A	216395800		Screw,1/4 20 X 1/2				$ 4.52
F10A	216917100		Screw,8-18x.625 ,flat Sems ,(2) ,bracket		Appelez-nous	-
F111	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	5303311565		Clip-cable				$ 2.10
NI	297086600		Caster,hardware Kit		Appelez-nous	-
NI	216742701		Screw,8-18 X 9/16 ,black ,(4)		Appelez-nous	-
NI	297069300		Harness,electrical ,evaporator				$ 68.61
NI	297001705		Insulation,84`` ,drain Tube		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
