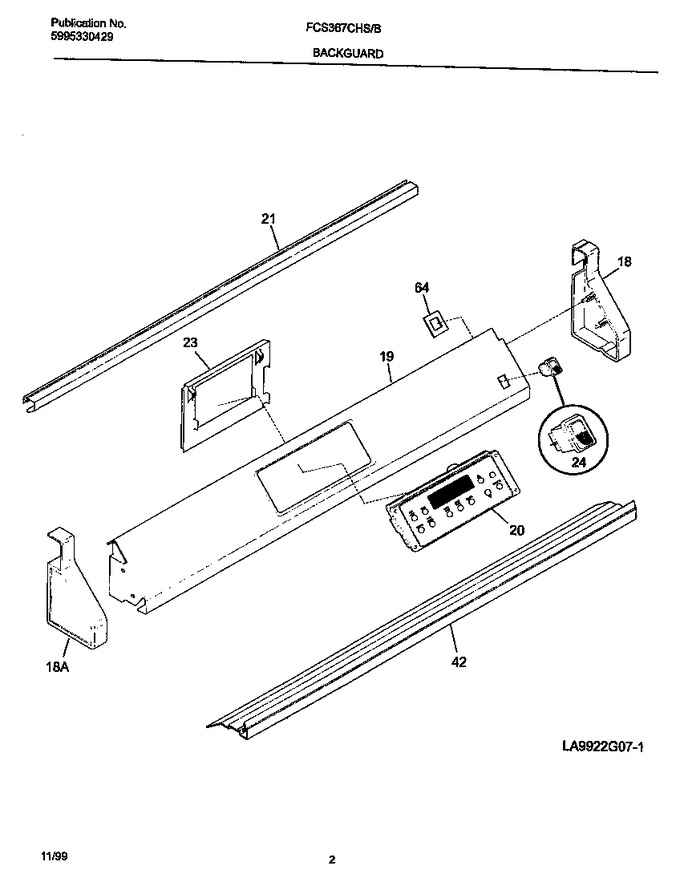

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 5303304671 | End Cap, White, Lh |
|
- | |||||
| 18 | 5303304668 | End Cap, White, Rh |
|
- | |||||
| 19 | 318005582 | Panel-control,white |
|
- | |||||
| 20 | 318012915 | Clock/timer, Eoc, White |
|
- | |||||
| 21 | 318027804 | Trim-backguard,top |
|
$ 135.56 | |||||
| 23 | 318015020 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5304527842 | Switch-rocker, Oven Light, White (Replaces: 316005607) |
|
Immediately | $ 16.13 | ||||
| 42 | 318106924 | Trim,backguard ,white ,bottom |
|
$ 132.04 | |||||
| 64 | 318112200 | Mtg Rocker Switch |
|
- | |||||
| *67360 | 08016432 | Screw,truss Head ,8-18 X 0.375 ,(4) |
|
- | |||||
| *67361 | 5303323145 | Nut |
|
- | |||||
| *67362 | 318083167 | Wiring Harness |
|
- |
