SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Burner

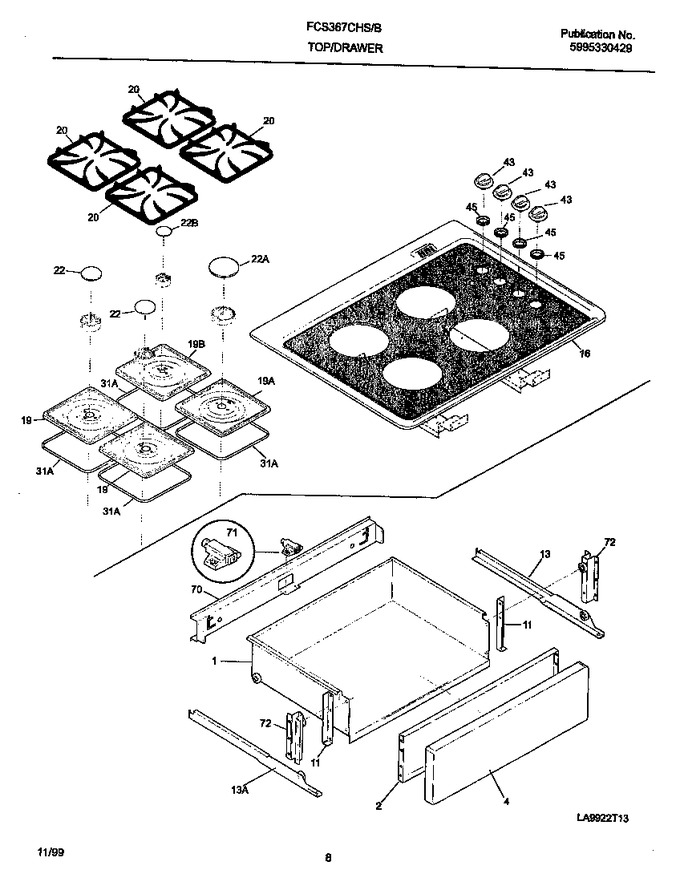

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311126		Panel-drawer,white		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
16	318079200		Main Top, Glass, White		Appelez-nous	-
19	318168116		Burner Pan Medium White,mid Lr & Fl				$ 97.65
19	318168126		Burner Pan Large White,large Rf				$ 93.40
19	318168106		Burner Pan Small White,small Rr				$ 77.29
20	318120106		Grate,(4)		Appelez-nous	-
22	318076411		Cap-burner,white ,mid Lf & Lr		Appelez-nous	-
22	318076421		Cap-burner,white ,large Rf				$ 147.70
22	318076401		Cap-burner,white ,small Rr		Appelez-nous	-
31	318053901		Gasket-pan   (Replaces: 318053900)				$ 33.60
36	318164720		Knob,temp Control		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*67363	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
