SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top / Drawer


11 - Door

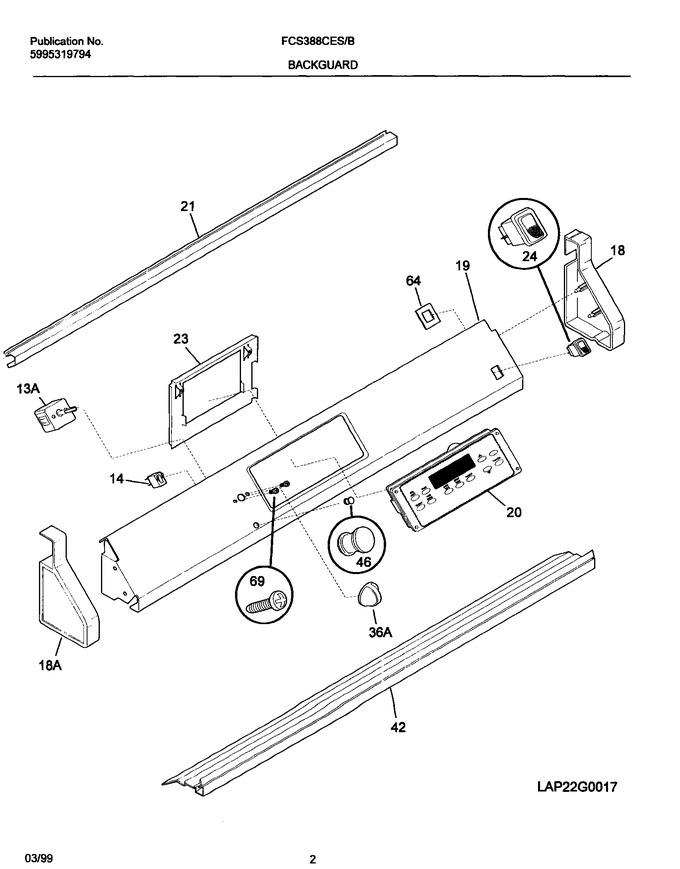

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318005539		Panel-control, White		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015020		Bracket-clock Mtg		Appelez-nous	-
42	318106904		Trim-vent		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
64	318112200		Plate		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
13A	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
18A	5303304671		End Cap, White, Lh		Appelez-nous	-
36A	318165101		Knob-warmer,white		Appelez-nous	-
F20	318012901		Clock, Timer		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303323145		Nut		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
