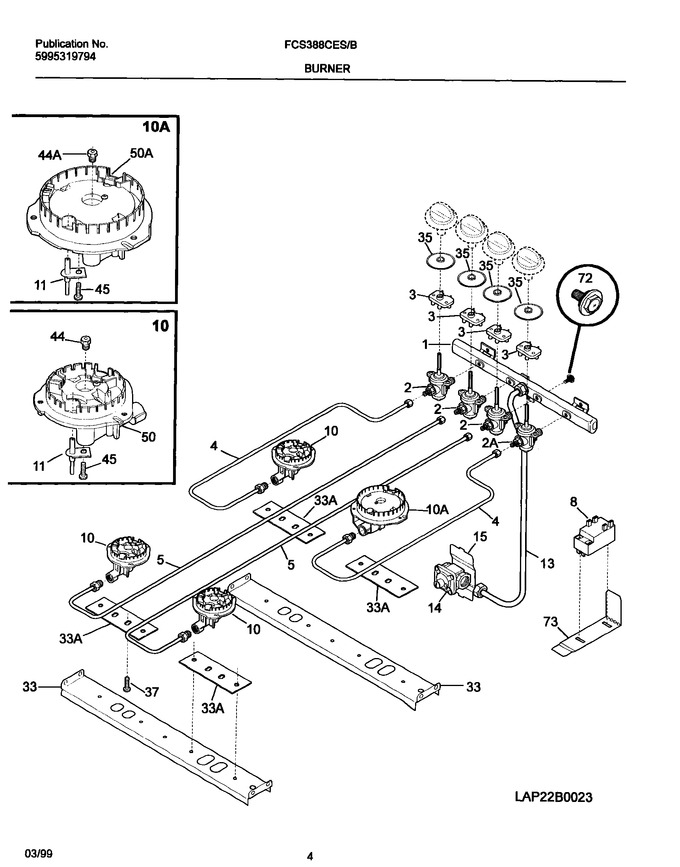

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177301		Manifold Pipe		Appelez-nous	-
11	316011200		Ignitor-top Burner			Immediately	$ 38.68
13	318054503		Connector, Manifold Tube		Appelez-nous	-
15	318122900		Bracket		Appelez-nous	-
33	318162300		Bracket-burner		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
37	5303320671		Screw, Metric				$ 1.91
44	318088700		Orifice		Appelez-nous	-
45	316011100		Screw-ignitor				$ 3.41
72	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
73	318080100		Plate		Appelez-nous	-
33A	318072000		Bracket-burner Mtg		Appelez-nous	-
44A	318088702		Orifice		Appelez-nous	-
F10	318055001		Burner Assy		Appelez-nous	-
F10A	318055100		Burner Assy		Appelez-nous	-
F14	318122700		Regulator,pressure				$ 139.63
F2	5303935042		Valve-top Burner				$ 175.25
F2A	318087020		Valve-top Burner		Appelez-nous	-
F3	316032002		Switch-ignitor				$ 63.46
F4	5303305456		Tube-burner		Appelez-nous	-
F5	5303305455		Tube-burner		Appelez-nous	-
F50	316010700		Burner Top		Appelez-nous	-
F50A	316077300		Burner Top		Appelez-nous	-
F8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
NI	5303319611		Lp Conversion Kit				$ 59.35
NI	316048200		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
