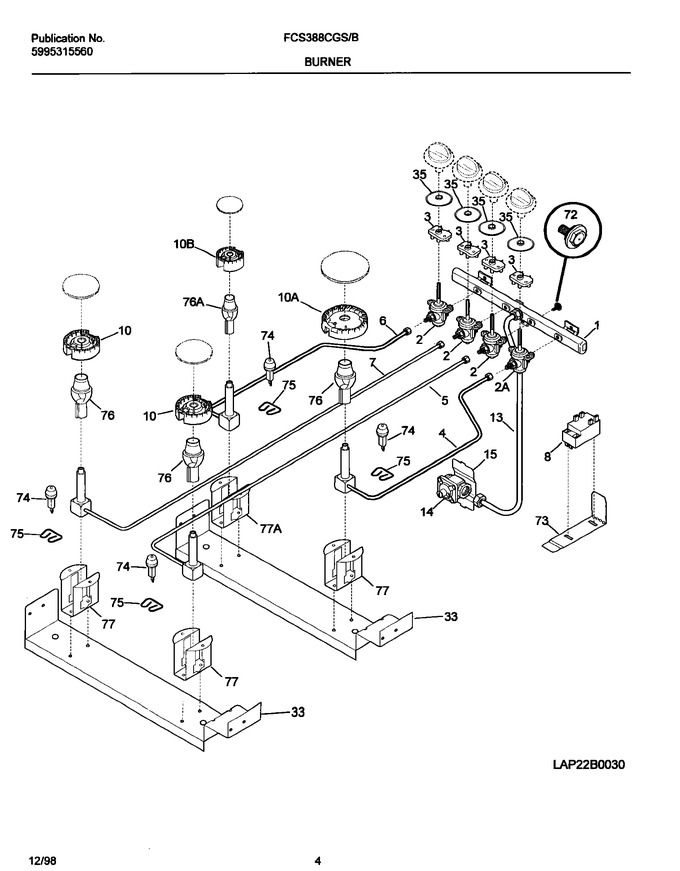

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177301		Manifold Pipe		Appelez-nous	-
13	318054503		Connector, Manifold Tube		Appelez-nous	-
15	318122900		Bracket		Appelez-nous	-
33	318171500		Bracket,burner		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
72	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
73	318080100		Plate		Appelez-nous	-
75	318148800		Clip-spark Ignitor				$ 68.57
77	318112010		Bracket-burner Mtg		Appelez-nous	-
76A	318167800		Small Mixing Tube				$ 78.33
77A	318112000		Bracket-burner Mtg				$ 51.14
F10	318148001		Burner Assy-mid				$ 112.88
F10A	318148002		Large Burner				$ 144.64
F10B	318148000		Small Burner				$ 252.58
F14	318122700		Regulator,pressure				$ 139.63
F2	5303935042		Valve-top Burner				$ 175.25
F2A	318087001		Valve-top Burner				$ 204.59
F3	316032002		Switch-ignitor				$ 63.46
F4	318167703		Tube-burner				$ 204.70
F5	318167700		Tube-burner				$ 210.05
F6	318167702		Tube-burner				$ 213.83
F7	318167701		Tube-burner				$ 233.00
F74	318148700		Ignitor				$ 62.19
F76	318167801		Mid & Large Mixing Tube				$ 98.60
F8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
NI	316048200		Screw		Appelez-nous	-
NI	318127701		Lp Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
