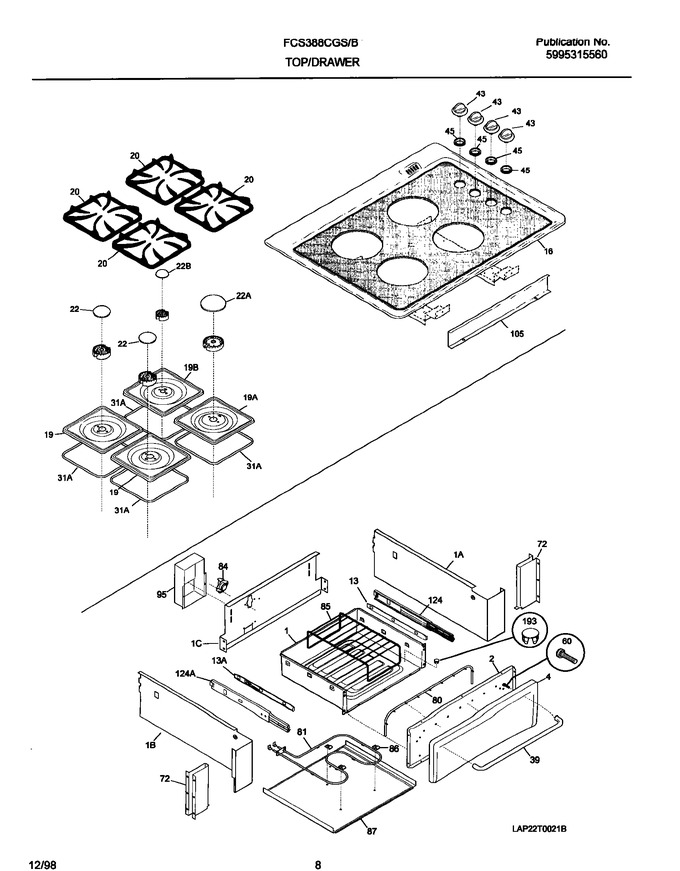

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108013		Inner-panel-drawer		Appelez-nous	-
4	5303300149		Panel-drawer, White		Appelez-nous	-
13	316094900		Rail,drawer ,rh Outer		Appelez-nous	-
16	318079200		Main Top, Glass, White		Appelez-nous	-
19	318168116		Pan,burner ,white ,medium				$ 97.65
20	318120104		Grate		Appelez-nous	-
22	318076411		Cap-burner Medium Grey		Appelez-nous	-
39	316026103		Handle-drawer, White		Appelez-nous	-
43	318016500		Knob, Top Valve		Appelez-nous	-
45	5303307933		Bushing, Top Burner Knob		Appelez-nous	-
60	5304453707		Screw-handle   (Replaces: 5303300155)			Immediately	$ 15.92
72	318113401		Bracket-slide		Appelez-nous	-
80	318052700		Seal,door ,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip-hold Down				$ 9.93
87	318121501		Base-warmer		Appelez-nous	-
95	318143701		Cover-wire		Appelez-nous	-
105	318171600		Glass Support		Appelez-nous	-
124	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
193	5304400796		Plug		Appelez-nous	-
124A	316096501		Channel Drawer,lh,inner		Appelez-nous	-
13A	316094901		Rail-drawer,lh,outer		Appelez-nous	-
19A	318168126		Pan,burner ,white ,large				$ 93.40
19B	318168106		Pan,burner ,white ,small				$ 77.29
1A	318143307		Deflector-warmer,side,rh		Appelez-nous	-
1B	318143306		Deflector-warmer,side,lh		Appelez-nous	-
1C	318143201		Deflector-warmer,rear		Appelez-nous	-
22A	318076421		Cap-burner Large Grey				$ 147.70
22B	318076401		Cap-burner Small Grey		Appelez-nous	-
31A	5303307931		Gasket, Pan		Appelez-nous	-
F81	316093100		Element, Warmer Drawer		Appelez-nous	-
F84	318005101		Thermostat		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	08011955		Screw,10-24 X 3/8			Immediately	$ 9.36
NI	5304403558		Screw, 10-16 X 1/4		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18

    View Diagram in Separate Window       Print Part List
