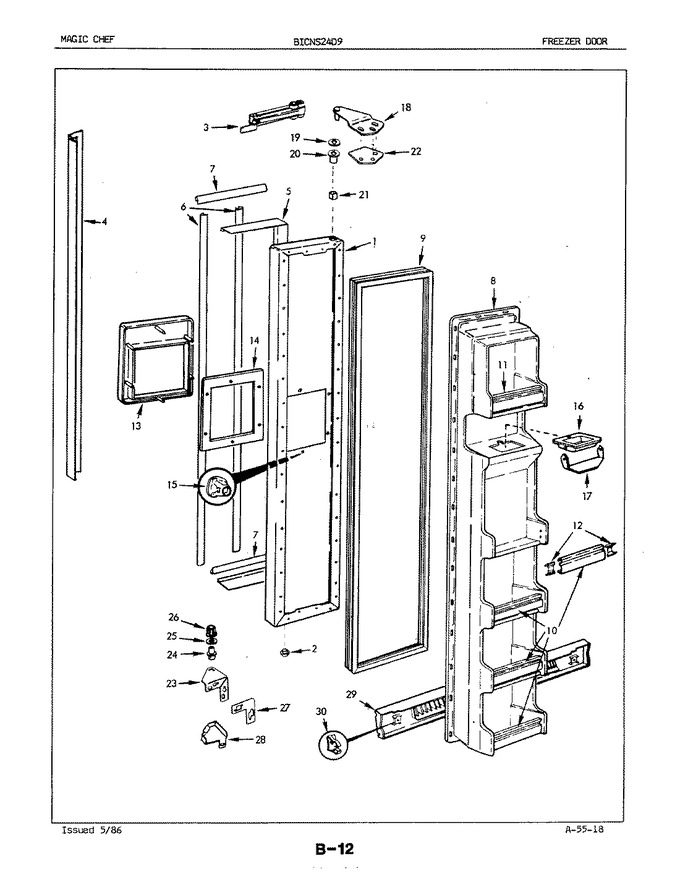

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63069-11-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
4	402100-1		Screw		Appelez-nous	-
4	420063-1		Washer		Appelez-nous	-
4	64003-1		Handle		Appelez-nous	-
5	64002-2		Trim		Appelez-nous	-
6	58316-1		Retainer		Appelez-nous	-
7	29458-2		Stud		Appelez-nous	-
7	58316-5		Retainer		Appelez-nous	-
8	59433-76		Inner Panel		Appelez-nous	-
8	9986-12		Screw,door Liner		Appelez-nous	-
9	53712-1		Gasket		Appelez-nous	-
10	59258-4		Trim		Appelez-nous	-
11	59258-25		Trim		Appelez-nous	-
12	65246-1		Retainer				$ 5.04
13	60482-6		Escutcheon		Appelez-nous	-
14	63057-1		Seal, Escutcheon		Appelez-nous	-
15	65211-1		Retainer, Nameplate		Appelez-nous	-
16	63020-1		Collar		Appelez-nous	-
17	63075-1		Door, Ice Chute		Appelez-nous	-
18	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
19	52185-2		Washer		Appelez-nous	-
20	55781-2		Bushing		Appelez-nous	-
21	55990-1		Seal Sleeve		Appelez-nous	-
22	65031-1		Shim, Upper Hinge		Appelez-nous	-
23	403062-5		Screw		Appelez-nous	-
23	400062-1		Screw		Appelez-nous	-
23	53671-15		Hinge		Appelez-nous	-
24	55479-1		Pin		Appelez-nous	-
25	54233-2		Washer		Appelez-nous	-
26	55437-1		Bushing		Appelez-nous	-
27	53688-2		Spacer		Appelez-nous	-
28	53815-11		Cover		Appelez-nous	-
29	56478-17		Kickplate		Appelez-nous	-
30	52854-3		Clip, Kickplate		Appelez-nous	-
