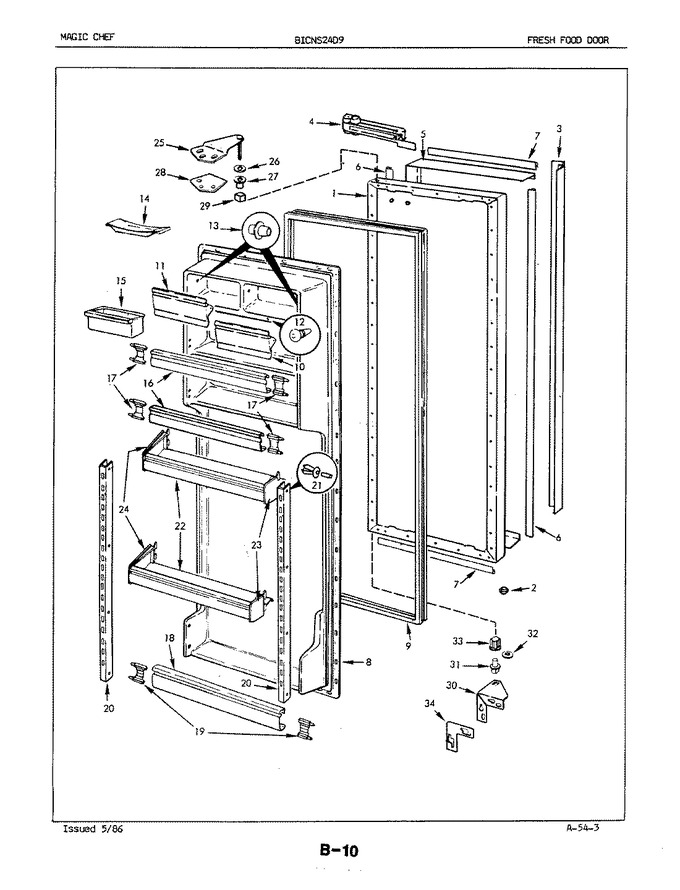

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53766-52-AM		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	64003-1		Handle		Appelez-nous	-
3	420063-1		Washer		Appelez-nous	-
3	402100-1		Screw		Appelez-nous	-
4	54485-1		Closer, Door		Appelez-nous	-
4	52614-1		Bracket, Closer		Appelez-nous	-
4	52613-1		Insulation, Closer		Appelez-nous	-
5	29458-2		Stud		Appelez-nous	-
5	64002-1		Trim		Appelez-nous	-
6	58316-1		Retainer		Appelez-nous	-
7	58316-4		Retainer		Appelez-nous	-
8	9986-12		Screw,door Liner		Appelez-nous	-
8	59433-63		Inner Panel		Appelez-nous	-
9	53712-2		Gasket		Appelez-nous	-
10	59234-25		Butter Door		Appelez-nous	-
11	59234-24		Cheese Door		Appelez-nous	-
12	59615-2		Bumper		Appelez-nous	-
13	59325-1		Pivot		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	58368-6		Egg Bucket		Appelez-nous	-
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-81)				$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	59258-3		Trim		Appelez-nous	-
19	65246-1		Retainer				$ 5.04
20	59994-9		Rack		Appelez-nous	-
21	59920-2		Rivet		Appelez-nous	-
22	62634-1		Trim		Appelez-nous	-
23	62138-9		End Cap		Appelez-nous	-
24	62138-10		End Cap		Appelez-nous	-
25	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
25	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
26	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
27	55781-2		Bushing		Appelez-nous	-
28	65031-1		Shim, Upper Hinge		Appelez-nous	-
29	55990-1		Seal Sleeve		Appelez-nous	-
30	53671-10		Hinge		Appelez-nous	-
30	403062-5		Screw		Appelez-nous	-
31	53672-1		Pin, Lower Hinge		Appelez-nous	-
32	54233-1		Washer				$ 7.71
33	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
34	53688-3		Spacer		Appelez-nous	-
