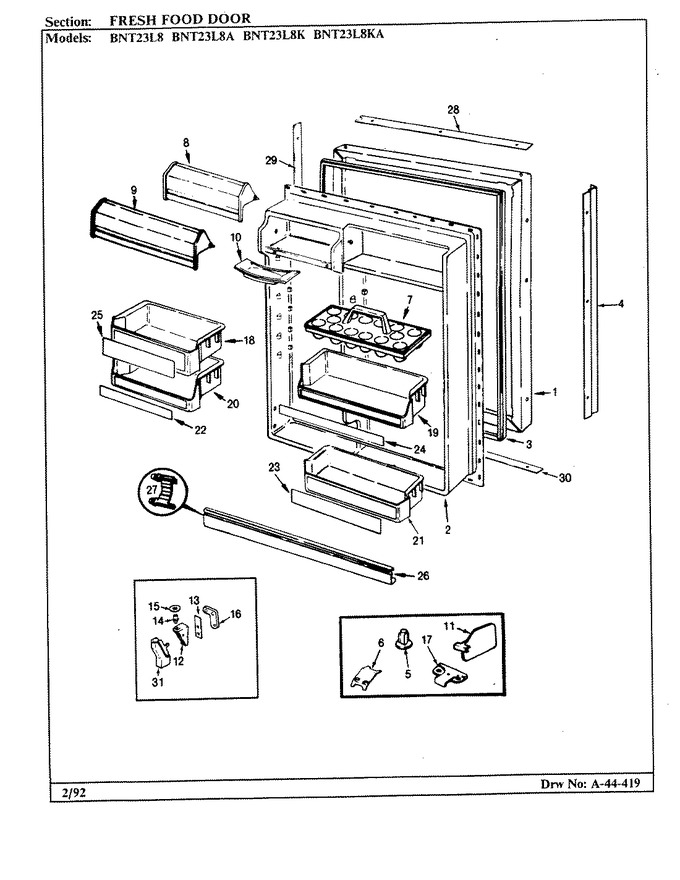

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA95056-1 | Door Insulation Kit |
|
- | |||||
| 1 | 68475-4-AM | Panel, F.f. Door (alm) |
|
- | |||||
| 2 | 65275-5 | Screw |
|
- | |||||
| 2 | 68721-1 | Inner Panel |
|
- | |||||
| 3 | 66199-8 | Gasket, Door |
|
- | |||||
| 4 | 60319-4 | Screw, Anchor |
|
- | |||||
| 4 | 65275-4 | Screw |
|
- | |||||
| 4 | 66936-8 | Handle |
|
- | |||||
| 5 | 55782-6 | Plug Button (almond) |
|
- | |||||
| 6 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 7 | 60066-1 | Tray, Egg |
|
- | |||||
| 8 | 66184-479 | Door, Dairy |
|
- | |||||
| 9 | 66184-446 | Door, Dairy |
|
- | |||||
| 10 | 29936-2 | Tray, Butter |
|
- | |||||
| 11 | 66645-6 | Organizer Package |
|
- | |||||
| 12 | 65275-51 | Screw, Lower Hinge |
|
- | |||||
| 12 | 68975-2 | Hinge, Lower |
|
- | |||||
| 13 | 69031-1 | Shim |
|
- | |||||
| 14 | 68977-1 | Pin, Hinge |
|
- | |||||
| 15 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) |
|
Immediately | $ 45.86 | ||||
| 16 | 65275-10 | Screw, Tapping Plate |
|
- | |||||
| 16 | 67874-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 17 | 68987-2 | Stop, Door |
|
- | |||||
| 17 | 65275-48 | Screw |
|
- | |||||
| 18 | 60037-35 | Door Shelf |
|
- | |||||
| 19 | 60037-40 | Door Shelf |
|
- | |||||
| 20 | 60037-37 | Shelf, Pick-off |
|
- | |||||
| 21 | 60037-39 | Door Shelf |
|
- | |||||
| 22 | 68130-44 | Trim |
|
- | |||||
| 23 | 68130-42 | Insert |
|
- | |||||
| 24 | 68130-41 | Insert |
|
- | |||||
| 25 | 68130-43 | Insert |
|
- | |||||
| 26 | WP61003045 | Trim, Door Shelf (Replaces: 65151-340) |
|
$ 129.55 | |||||
| 27 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 28 | 66937-1 | Perimeter Trim |
|
- | |||||
| 29 | 66937-3 | Perimeter Trim |
|
- | |||||
| 30 | 66937-4 | Perimeter Trim |
|
- | |||||
| 30 | 400015-12 | Screw |
|
- | |||||
| 31 | 68978-1 | Cover, Lower Hinge (blk) |
|
- |
