SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit

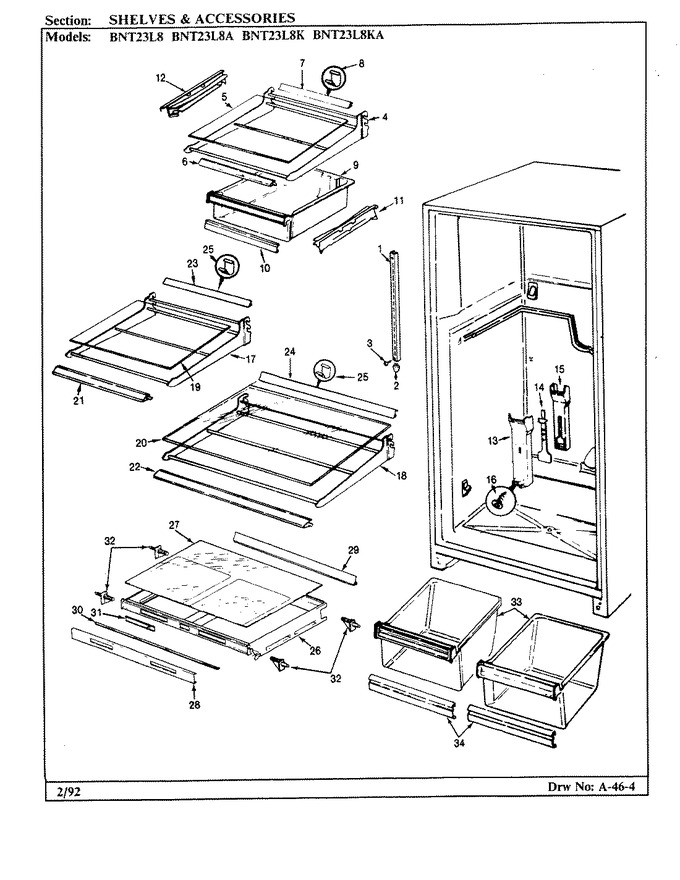

06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
2	60340-1		End Cap, Center Rail		Appelez-nous	-
3	400037-28		Screw		Appelez-nous	-
4	60570-41		Frame, Shelf		Appelez-nous	-
5	66604-35		Shelf, Meat		Appelez-nous	-
6	60524-42		Trim Shelf		Appelez-nous	-
7	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
8	66333-2		Clip		Appelez-nous	-
9	66523-10		Pan, Meat		Appelez-nous	-
10	66230-13		Trim		Appelez-nous	-
11	66814-2		Rail, Meat Pan (rt)		Appelez-nous	-
12	66813-2		Slide Rail,meat & Deli Pan		Appelez-nous	-
13	60094-21		Tunnel		Appelez-nous	-
14	60093-2		Damper, Air Tunnel		Appelez-nous	-
15	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
16	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
17	60570-41		Frame, Shelf		Appelez-nous	-
18	60570-48		Frame, Shelf		Appelez-nous	-
19	66604-27		Glass, Shelf		Appelez-nous	-
20	66604-26		Glass, Cantilever Shelf		Appelez-nous	-
21	60524-42		Trim Shelf		Appelez-nous	-
22	60524-39		Trim		Appelez-nous	-
23	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
24	65276-27		Trim, Rear-full		Appelez-nous	-
25	66333-1		Clip, Shelf Trim		Appelez-nous	-
26	69057-3		Shelf, Crisper		Appelez-nous	-
27	68743-15		Shelf, Crisper		Appelez-nous	-
28	68744-5		Trim		Appelez-nous	-
29	68798-2		Trim		Appelez-nous	-
30	68797-2		Seal		Appelez-nous	-
31	69542-1		Slide, Control		Appelez-nous	-
32	68836-1		Stud, Crisper Support		Appelez-nous	-
33	68223-409		Pan, Crisper		Appelez-nous	-
34	66230-15		Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
