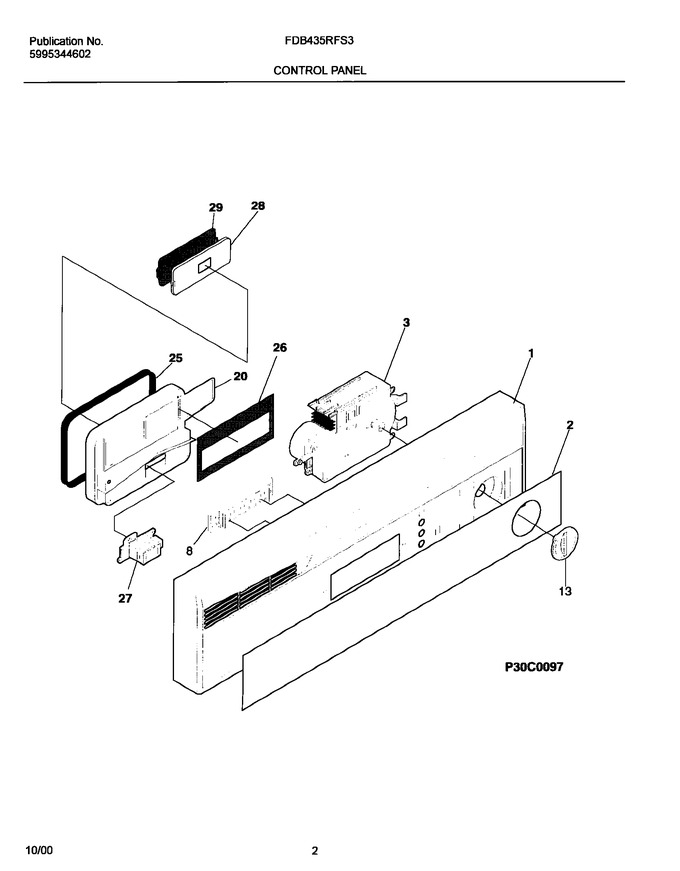

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368204		Panel-control,white				$ 215.04
2	154236601		Insert-control Pnl		Appelez-nous	-
3	154131203		Shield-timer		Appelez-nous	-
3	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
8	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
8	154248601		Shield,switch		Appelez-nous	-
13	154239501		Knob,timer ,white		Appelez-nous	-
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
F3	154295701		Timer		Appelez-nous	-
F8	154215101		Switch-selector, 4b Tap Touch		Appelez-nous	-
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
NI	154385201		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
