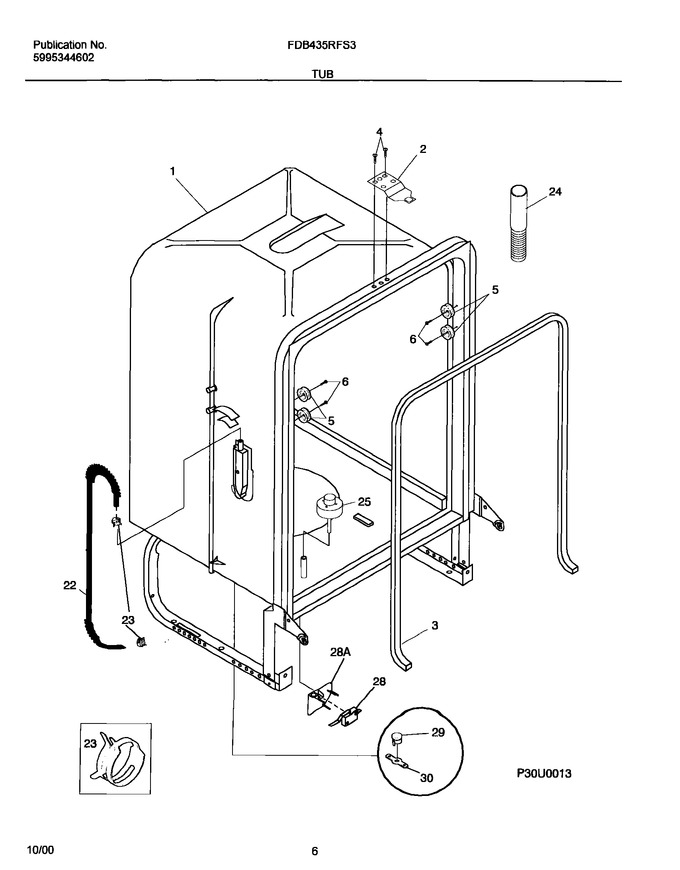

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154209301		Tub Assy, W/frame Parts				$ 453.86
2	154662601		Strike-door   (Replaces: 154211601)			Immediately	$ 39.69
4	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21
5	154333901		Roller-tub		Appelez-nous	-
6	5303943103		Screw W/washer			Immediately	$ 17.72
22	5304523457		Tubing-water Inlet   (Replaces: 154239801)			Immediately	$ 14.03
23	5304538466		Clamp-tubing   (Replaces: 5303318539)				$ 2.31
30	154297701		Screw,retainer-thermo				$ 13.46
30	154241101		Retainer,thermostat				$ 3.62
28A	154773201		Bracket-float Switch   (Replaces: 154209801)			Immediately	$ 55.29
28A	154333301		Screw,bracket Mtg ,ph Truss Head		Appelez-nous	-
F24	154225602		Hose-drain			Immediately	$ 45.37
F25	5304532207		Float   (Replaces: 154209701)			Immediately	$ 6.89
F28	154225501		Switch,float				$ 84.68
F29	154290204		Thermostat,re-settable			Immediately	$ 64.49
F3	8581548276014		Gasket-tub   (Replaces: 154211801)			Immediately	$ 26.30
NI	154641601		Insulation,tub   (Replaces: 154238304)				$ 6.15
NI	154360201		Insulation, Blanket, Back		Appelez-nous	-
NI	5300807270		Screw,(2) ,countertop Mtg.				$ 6.72

    View Diagram in Separate Window       Print Part List
