View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

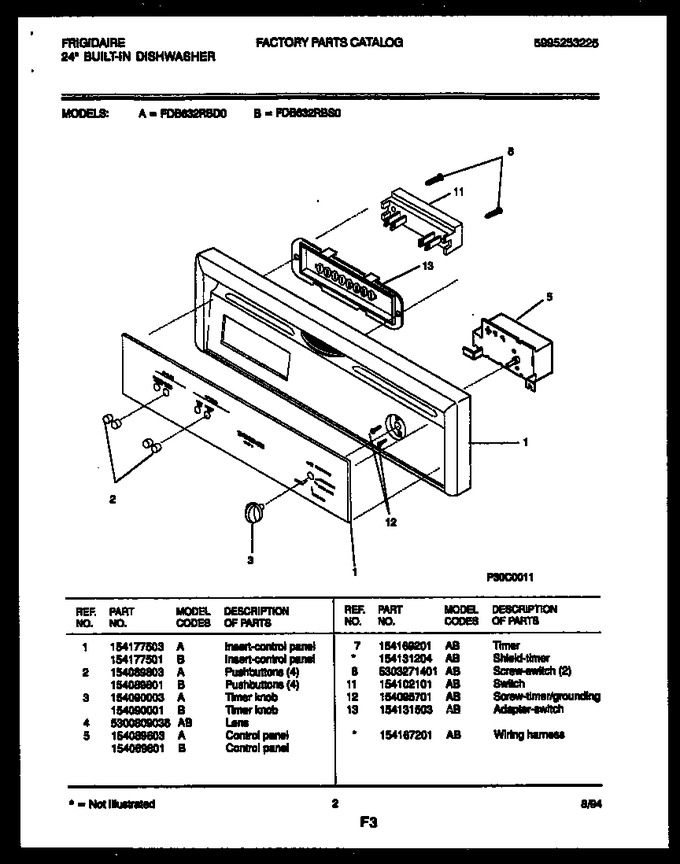

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154177503 | Insert-control Panel |
|
- | |||||
| 2 | 154089803 | Push Buttons (4) |
|
- | |||||
| 3 | 154090003 | Timer Knob |
|
- | |||||
| 4 | 5300809036 | Lens |
|
$ 20.90 | |||||
| 5 | 154089603 | Control Panel |
|
- | |||||
| 7 | 154169201 | Timer |
|
$ 277.78 | |||||
| 8 | 5303271401 | Screw-switch (2) |
|
- | |||||
| 11 | 154102101 | Switch |
|
- | |||||
| 12 | 154095701 | Screw-timer/grounding |
|
$ 10.34 | |||||
| 13 | 154131503 | Adapter-switch |
|
- | |||||
| *10722 | 154167201 | Wiring Harness |
|
- | |||||
| 7A | 154131204 | Shield-timer (non-illustrated) |
|
- |
