04 - Door Parts


05 - Tub And Frame Parts


06 - Motor Pump Parts


07 - Power Dry And Motor Parts


08 - Racks And Trays

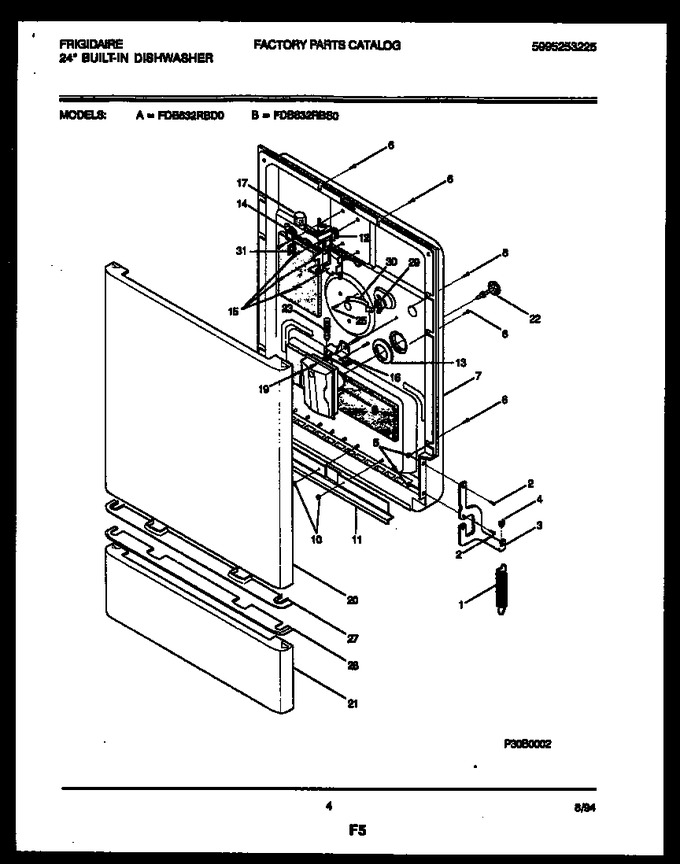

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809703		Door Spring				$ 39.04
2	154093301		Screw-10-24 X 58``			Immediately	$ 2.12
3	5303270031		Arm Assembly (2)				$ 79.75
4	5300805884		Spring Pad (2)		Appelez-nous	-
5	154079601		Nut (4)				$ 0.41
6	5300809696		Screw-8-18		Appelez-nous	-
7	154196902		Door Assy				$ 228.01
8	5300808749		Screw-8 X 5/8``(6)		Appelez-nous	-
9	5300806753		Body-dispenser				$ 69.93
10	154026601		Speednut				$ 25.67
11	5300809773		Baffle Seal		Appelez-nous	-
12	154132502		Latch Assy		Appelez-nous	-
13	5300805631		Grommet-rinse Agent				$ 6.29
14	154105301		Switch				$ 21.63
15	218781101		Screw-8a X 5/8`` (4)   (Replaces: 154026501)				$ 15.60
16	5300809782		Bi-metal Rinse Dispenser				$ 47.51
17	5300808712		Latch Knob				$ 31.71
18	5300808715		Screw, 8, 32 X 5/16``		Appelez-nous	-
19	5300807501		Screw-8a X 1/2``		Appelez-nous	-
20	154087602		Door-panel-almond		Appelez-nous	-
21	154087702		Access Pnl-almond		Appelez-nous	-
22	5303943094		Fill-plug		Appelez-nous	-
23	5300809898		Plunger				$ 36.49
25	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
27	154189402		Trim-bottom-almond		Appelez-nous	-
28	154087802		Trim-top-almond		Appelez-nous	-
29	5300808956		Thermostat				$ 3.78
30	5300809097		Retainer-thermostat		Appelez-nous	-
31	154142901		Cover-switch		Appelez-nous	-
27A	154144401		Clip-attach (4) (non-illustrated)		Appelez-nous	-
28A	154144401		Clip-attach (2) (non-illustrated)		Appelez-nous	-
