SELECT A DIAGRAM

Diagram for 01 - Cover
01 - Cover

Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Door
03 - Door

Diagram for 04 - Tub
04 - Tub

Diagram for 05 - Motor
05 - Motor

Diagram for 06 - Frame
06 - Frame

Diagram for 07 - Rack
07 - Rack


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154368201 Panel-control,white Appelez-nous -
2 154372101 Insert-control Pnl,white Special Order $ 16.01

3 154351102 Timer Appelez-nous -
8 154373701 Switch-selector,6 Button Appelez-nous -
13 154239501 Knob,timer ,white Appelez-nous -
20 154283701 Vapor Weldment Assy Appelez-nous -
25 154303901 Gasket-vent Appelez-nous -
26 154229201 Seal-chamber Special Order $ 12.81

27 154226701 Actuator,wax Special Order $ 65.46

28 154226901 Valve-vent Appelez-nous -
29 154226403 Gasket-valve Appelez-nous -
*06840 154248601 Shield,switch Appelez-nous -
*06841 154779601 Screw,mtg.   (Replaces: 5303318719) Special Order $ 1.42

*06842 154283901 Screw,8-10 ,3/8 Phillips Special Order $ 7.56

*06843 154373901 Wiring Harness,main Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

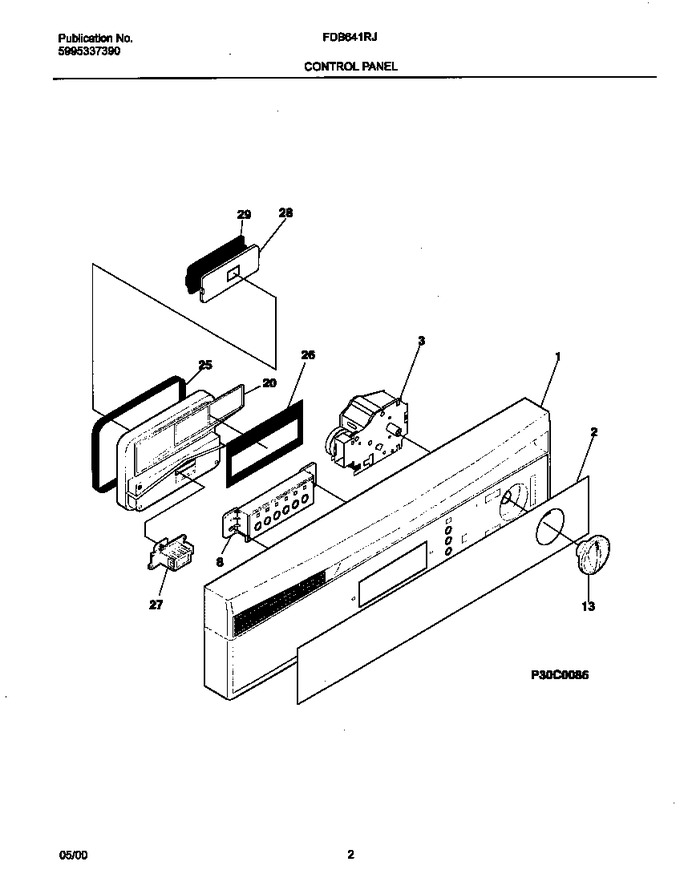

Diagram for FDB641RJS0
