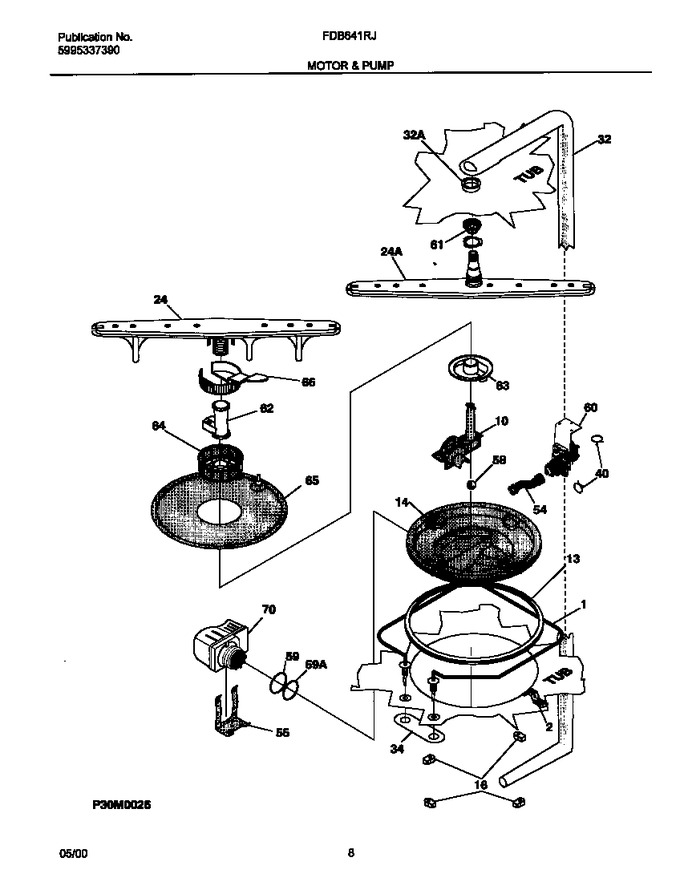

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154665201 | Heater (Replaces: 154247601) |
|
Immediately | $ 78.97 | ||||
| 2 | 154359701 | Bracket,heater ,(2) |
|
- | |||||
| 10 | 807145201 | Cover-volute (Replaces: 154245501) |
|
Immediately | $ 19.90 | ||||
| 13 | 154246801 | Gasket-sump |
|
$ 52.17 | |||||
| 14 | 154365902 | Housing-sump |
|
$ 74.81 | |||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 40.40 | ||||
| 24 | 5304517203 | Spray Arm-lower (Replaces: 154250801) |
|
Immediately | $ 41.76 | ||||
| 32 | 154251701 | Tube,delivery |
|
- | |||||
| 32 | 154406401 | Gasket-delivery Tube (Replaces: 154358901) |
|
Immediately | $ 15.46 | ||||
| 34 | 154064901 | Washer-insulating |
|
$ 8.14 | |||||
| 54 | 154234401 | Hose,connector |
|
$ 68.68 | |||||
| 55 | 5304534830 | Bracket-motor (Replaces: 154362301) |
|
$ 5.54 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 55.99 | ||||
| 59 | 154246901 | O-ring,rear |
|
Immediately | $ 56.70 | ||||
| 59 | 154247001 | O-ring,front |
|
Immediately | $ 56.70 | ||||
| 60 | 154247502 | Drain Pump Assy |
|
- | |||||
| 61 | 154359501 | Nozzle,2nd Level ,spray Arm |
|
- | |||||
| 62 | 5304532235 | Support-spray Arm (Replaces: 154294101) |
|
Immediately | $ 7.33 | ||||
| 63 | 5304532205 | Base,soil Director (Replaces: 154252201) |
|
Immediately | $ 13.74 | ||||
| 64 | 5304532205 | Filter-soil Director (Replaces: 154252301) |
|
Immediately | $ 13.74 | ||||
| 65 | 140281806020 | Filter-polypro (Replaces: 154252401) |
|
Immediately | $ 8.85 | ||||
| 70 | 154859101 | Motor And Pump Kit (Replaces: 154405501) |
|
Immediately | $ 318.47 | ||||
| *06851 | 154106202 | Nut,heater ,(2) (Replaces: 154106201) |
|
Immediately | $ 18.32 | ||||
| *06852 | 154289801 | Shield-heater Terminal |
|
$ 7.33 | |||||
| *06853 | 154611101 | Clamp-hose,(2) (Replaces: 154106801) |
|
$ 12.05 | |||||
| *06854 | 5303316032 | Screw,truss Ss ,8 .625 |
|
$ 10.45 | |||||
| *06855 | 154234501 | Bracket,motor ,drain |
|
- | |||||
| *06856 | 154338601 | Clamp-p,nylon |
|
- | |||||
| 24A | 154313601 | Spray Arm-center |
|
Immediately | $ 44.65 | ||||
| 24B | 154252001 | Nut-spray Arm |
|
$ 40.45 | |||||
| 40A | 154348401 | Clamp,red ,pump |
|
$ 32.96 | |||||
| 40B | 154348501 | Clamp,silver ,pump |
|
$ 33.02 |
