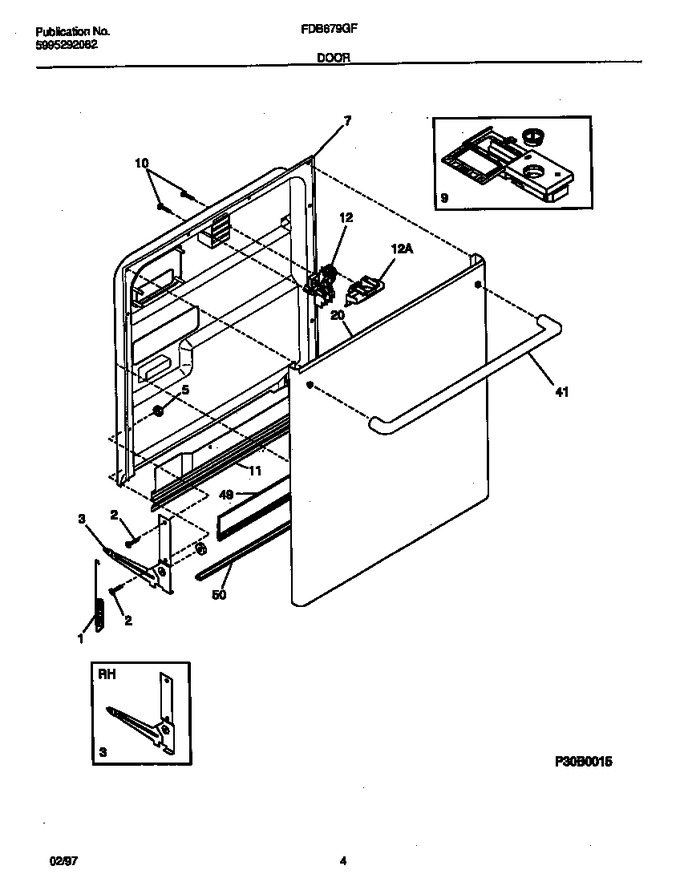

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Rack
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430601 | Spring-door, (2) (Replaces: 154226002) |
|
Immediately | $ 48.12 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 5 | 154079601 | Nut,arm Assy ,(4) |
|
$ 0.41 | |||||
| 7 | 154299002 | Door-inner Assy |
|
- | |||||
| 9 | 154574401 | Dispenser-det/rinse Aid (Replaces: 154230101) |
|
Immediately | $ 102.77 | ||||
| 10 | 154419403 | Screw,8a X .375`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 12 | 5304442175 | Latch Assy (Replaces: 154211201) |
|
Immediately | $ 151.49 | ||||
| 12 | 154293103 | Handle-latch, Black |
|
- | |||||
| 20 | 154281907 | Panel-outer Door,stainless Steel , |
|
- | |||||
| 41 | 154207004 | Towel Bar Assy |
|
$ 340.25 | |||||
| 49 | 809006501 | Gasket-door,bottom (Replaces: 154297602) |
|
Immediately | $ 36.22 | ||||
| 50 | 154211401 | Support-door Hinge |
|
$ 25.69 | |||||
| *45044 | 154211501 | Pin,arm |
|
- | |||||
| *45045 | 154103702 | Screw-latch Mtg, (2) |
|
$ 13.46 | |||||
| *45046 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| *45047 | 154213801 | Cleaner, Stainless Steel |
|
- | |||||
| *45048 | 5304538695 | Insulation,door (Replaces: 154253201) |
|
- | |||||
| *45049 | 5300808749 | Screw, C.r. Truss, 8 .625 |
|
- | |||||
| *45050 | 5300809055 | Screw, Cr Truss S.s., 8 .438 |
|
$ 1.21 | |||||
| *45051 | 5300809696 | Screw-8-18 |
|
- | |||||
| 3A | 5304409912 | Arm Assy, Rh (Replaces: 154225901) |
|
$ 59.54 | |||||
| 3B | 5304409912 | Arm Assy, Lh (Replaces: 154225902) |
|
$ 59.54 |
