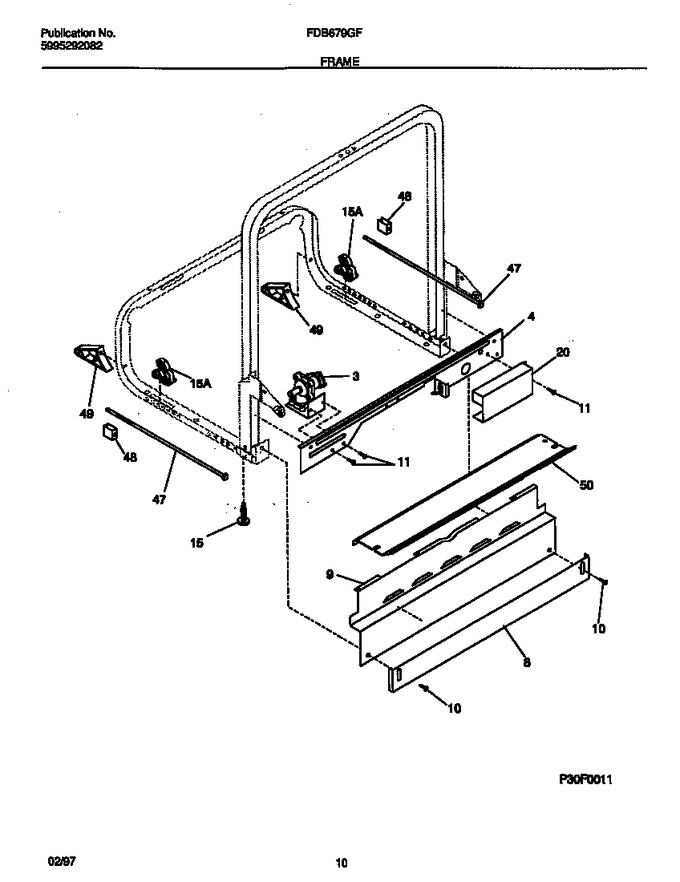

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	154637401		Valve-water   (Replaces: 154219601)			Immediately	$ 21.36
4	5304508587		Brace-front   (Replaces: 154208701)				$ 28.92
8	154745503		Toeplate-adjustable   (Replaces: 154227002)			Immediately	$ 15.75
9	5304501484		Toeplate   (Replaces: 154224702)			Immediately	$ 51.08
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	134154100		Screw-10-32 X 3/8   (Replaces: 154200701)				$ 13.46
15	154227101		Leveling-rear				$ 31.71
15	154210901		Screw-leveling		Appelez-nous	-
20	154209601		Cover-junction Box				$ 39.80
47	154227301		Rod, Rear Leg		Appelez-nous	-
48	154227201		Clip, Rear Leg		Appelez-nous	-
49	154227401		Guard-motor		Appelez-nous	-
50	154253301		Baffle-sound		Appelez-nous	-
*45066	154249301		Insulation, Kickplate		Appelez-nous	-
*45067	154286801		Ring-retaining,adj Leg		Appelez-nous	-
*45068	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
*45069	154200601		Screw-10-16 X 3/8				$ 7.98
*45070	154290001		Insulation-baffle, Side		Appelez-nous	-
*45071	154290101		Guard-wire, Baffle		Appelez-nous	-
*45072	154290401		Insulation-baffle		Appelez-nous	-
*45073	5300807373		Washer		Appelez-nous	-
