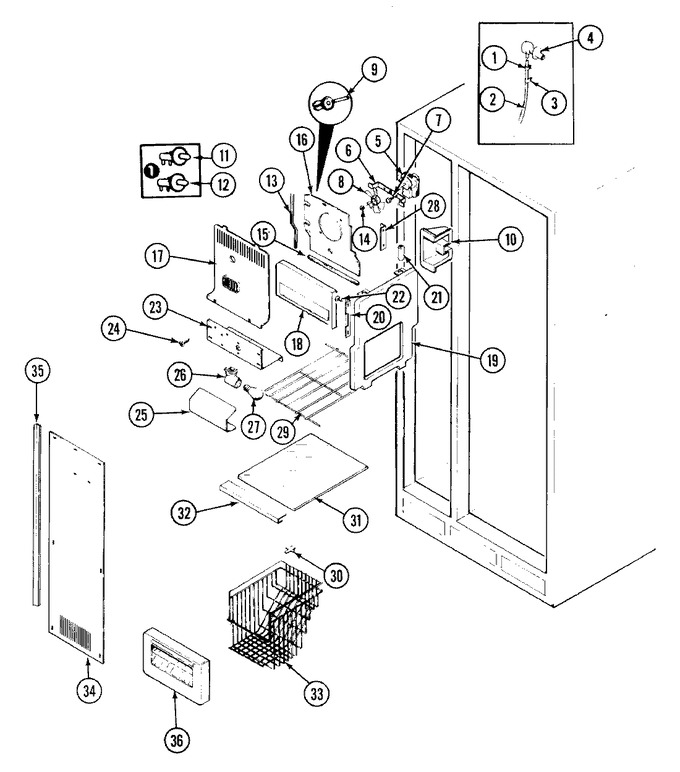

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | 12 |
|
$ 9.95 | ||||
| 2 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 12 |
|
$ 11.19 | ||||
| 3 | 65517-1 | Clip | 12 |
|
- | ||||
| 4 | 69219-1 | Grommet | 12 |
|
- | ||||
| 5 | 69593-1 | Wire Harness, Frz. Adapter | 12 |
|
- | ||||
| 5 | 56488-4 | Motor | 12 |
|
- | ||||
| 6 | 64856-1 | Bracket, Fan Motor | 12 |
|
- | ||||
| 7 | WP488729 | Screw (Replaces: 9986-45) | 12 |
|
Immediately | $ 7.01 | |||
| 8 | 52120-4 | Blade, Evaporator Fan | 12 |
|
- | ||||
| 9 | 22715-6 | Rivet | 12 |
|
- | ||||
| 10 | 53837-1 | Shield | 12 |
|
- | ||||
| 11 | 69832-2 | Switch, Light (w/nut) | 12 |
|
- | ||||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 12 |
|
Immediately | $ 33.51 | |||
| 13 | 66325-33 | Seal | 12 |
|
- | ||||
| 14 | 420092-900 | Washer, Spring | 12 |
|
- | ||||
| 15 | 66325-14 | Seal, Foam Tray | 12 |
|
- | ||||
| 16 | 68550-1 | Upper Cover | 12 |
|
- | ||||
| 17 | 66325-22 | Seal,fan Shield | 12 |
|
- | ||||
| 17 | 67225-3 | Shield, Fan | 12 |
|
- | ||||
| 18 | 68620-1 | Door, Access | 12 |
|
- | ||||
| 18 | 60313-1 | Cup, Shelf | 12 |
|
- | ||||
| 19 | 69874-1 | Insert, Ice Door | 12 |
|
- | ||||
| 19 | 68629-1 | Divider Shelf | 12 |
|
- | ||||
| 20 | 68572-1 | Latch | 12 |
|
- | ||||
| 21 | 68621-1 | Spacer | 12 |
|
- | ||||
| 22 | W11772394 | Screw (Replaces: 400021-1) | 12 |
|
Immediately | $ 10.94 | |||
| 23 | 67296-2 | Box, Auger Motor | 12 |
|
- | ||||
| 24 | 400015-12 | Screw | 12 |
|
- | ||||
| 25 | 67345-3 | Support, Light Shield | 12 |
|
- | ||||
| 25 | 67292-1 | Shield, Light | 12 |
|
- | ||||
| 26 | 29814-2 | Receptacle, Light | 12 |
|
- | ||||
| 27 | W11679940 | Bulb, Light (Replaces: 31956-1) | 12 |
|
Immediately | $ 10.17 | |||
| 28 | 52526-1 | Grommet | 12 |
|
- | ||||
| 28 | 67288-1 | Bracket, Mounting | 12 |
|
- | ||||
| 28 | 26527-11 | Tube, Drain | 12 |
|
- | ||||
| 28 | 67685-1 | Retainer | 12 |
|
- | ||||
| 29 | 68630-6 | Shelf, Dispenser | 12 |
|
- | ||||
| 29 | 67466-1 | Cup, Shelf | 12 |
|
- | ||||
| 30 | 52014-139 | Trim | 12 |
|
- | ||||
| 30 | 67488-1 | Clip, Basket Stop | 12 |
|
- | ||||
| 31 | 66604-40 | Shelf | 12 |
|
- | ||||
| 32 | 65561-116 | Trim, Shelf | 12 |
|
- | ||||
| 33 | 69661-2 | Basket, Frz. Wire | 12 |
|
- | ||||
| 34 | 67335-4 | Cover, Coil (lower) | 12 |
|
- | ||||
| 35 | 400015-12 | Screw | 12 |
|
- | ||||
| 35 | 67562-1 | Coil Cover, Gasket | 12 |
|
- | ||||
| 36 | 69666-7 | Insert, Pan Front | 12 |
|
- |
