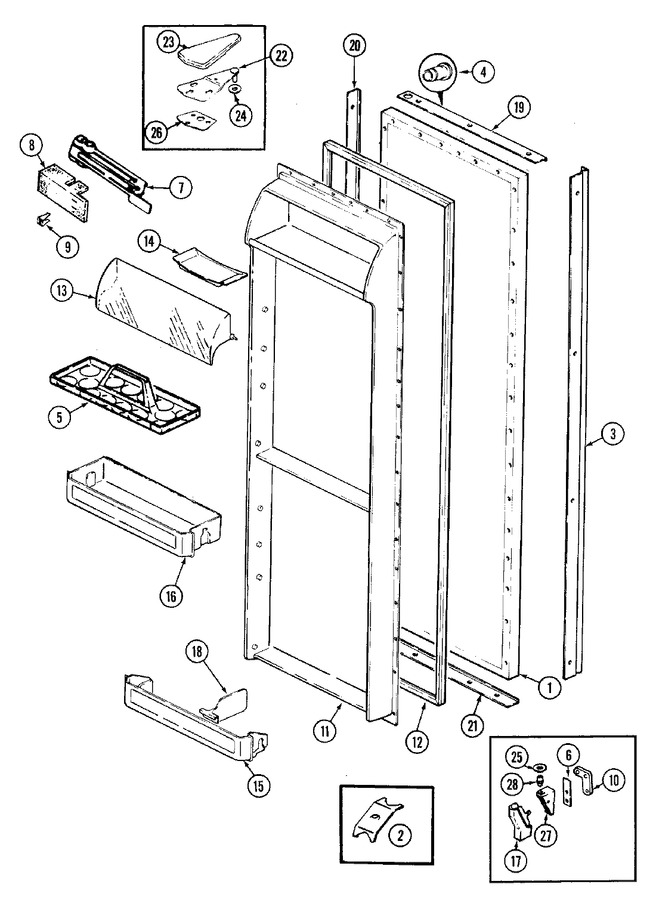

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	72348-1-BK	Panel, F.f. Door (blk)	12	Appelez-nous	-
2	66799-1	Achor, Screw	12	Appelez-nous	-
3	65275-37	Screw, Handle	12	Appelez-nous	-
3	69632-1	Handle, Extruded	12	Appelez-nous	-
4	29356-1	Retainer, Nameplate	12	Appelez-nous	-
5	60066-1	Tray, Egg	12	Appelez-nous	-
6	69510-1	Shim, Lower Hinge	12	Appelez-nous	-
7	69258-1	Closer, Door	12	Appelez-nous	-
7	WP489478	Screw (Replaces: 400017-1)	12			$ 6.98
8	52613-1	Insulation, Closer	12	Appelez-nous	-
9	69261-1	Bracket, Closer	12	Appelez-nous	-
10	65275-59	Screw	12	Appelez-nous	-
10	67874-1	Tapping Plate, Lower Hinge	12	Appelez-nous	-
11	65275-5	Screw	12	Appelez-nous	-
11	69243-1	Liner, F.f. Door----na	12	Appelez-nous	-
12	70024-12	Gasket	12	Appelez-nous	-
13	69058-12	Door, Dairy	12	Appelez-nous	-
14	29936-2	Tray, Butter	12	Appelez-nous	-
15	69871-6	Front, Pick-off	12	Appelez-nous	-
16	69872-26	Shelf, Pick-off	12	Appelez-nous	-
16	67144-1	Grommet, Pick-off	12	Appelez-nous	-
17	68978-1	Cover, Lower Hinge (blk)	12	Appelez-nous	-
18	69759-2	Organizer	12	Appelez-nous	-
19	69631-2	Trim, Perimeter	12	Appelez-nous	-
20	69631-1	Trim, Perimeter	12	Appelez-nous	-
21	69631-3	Trim, Perimeter	12	Appelez-nous	-
21	66799-1	Achor, Screw	12	Appelez-nous	-
22	53709-22	Hinge, Upper	12	Appelez-nous	-
22	WP3-24838-048	Screw (Replaces: 65275-52)	12			$ 7.00
23	65003-6	Cover, Upper Hinge (wht)	12	Appelez-nous	-
24	WP52185-1	Washer (Replaces: 52185-1)	12		Immediately	$ 9.47
25	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	12		Immediately	$ 45.86
26	65031-1	Shim, Upper Hinge	12	Appelez-nous	-
27	65275-51	Screw, Lower Hinge	12	Appelez-nous	-
27	69516-2	Hinge, Lower (blk)	12	Appelez-nous	-
28	69845-1	Pin, Lower Hinge	12			$ 44.55
