01 - Cover
02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:

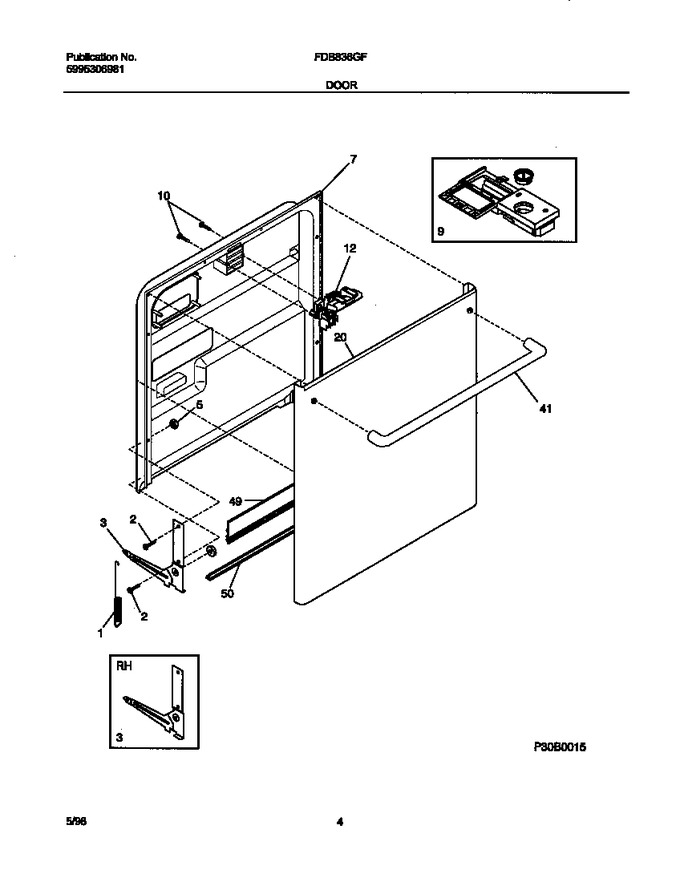

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430601 | Spring-door, (2) (Replaces: 154226002) |
|
Immediately | $ 48.12 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304409912 | Arm Assy, Rh (Replaces: 154225901) |
|
$ 59.54 | |||||
| 3 | 5304409912 | Arm Assy, Lh (Replaces: 154225902) |
|
$ 59.54 | |||||
| 5 | 154079601 | Nut,arm Assy ,(4) |
|
$ 0.41 | |||||
| 7 | 154226601 | Liner Grate |
|
- | |||||
| 7 | 154299002 | Door-inner Assy |
|
- | |||||
| 9 | 154574401 | Dispenser-det/rinse Aid (Replaces: 154230101) |
|
Immediately | $ 102.77 | ||||
| 10 | 154304301 | Screw-latch Mtg,(2) |
|
$ 7.51 | |||||
| 12 | 5304442175 | Latch Assy,black (Replaces: 154308103) |
|
Immediately | $ 151.49 | ||||
| 20 | 154292603 | Door, Black |
|
- | |||||
| 49 | 809006501 | Gasket-door, Bottom (Replaces: 154297601) |
|
Immediately | $ 36.22 | ||||
| 50 | 154211401 | Support-door Hinge |
|
$ 25.69 | |||||
| 51 | 154320301 | Clamp-wire,drip Loop |
|
$ 62.69 | |||||
| *49844 | 154211501 | Pin,arm |
|
- | |||||
| *49845 | 154298101 | Washer, Arm |
|
- | |||||
| *49846 | 154294701 | Screw,7 Plas .375 ,(6) ,disp. Assy. |
|
$ 9.22 | |||||
| *49847 | 154753101 | Thermister (Replaces: 154227501) |
|
Immediately | $ 24.80 | ||||
| *49848 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| *49849 | 5304538695 | Insulation,door (Replaces: 154253201) |
|
- | |||||
| *49850 | 5300808749 | Screw, C.r. Truss, 8 .625 |
|
- |
