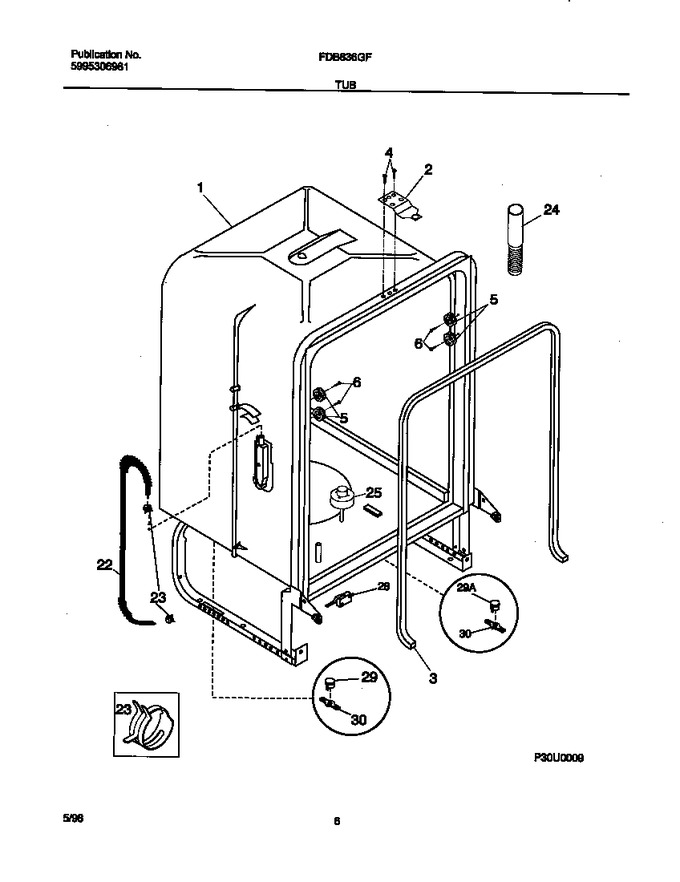

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154209301 | Tub Assy, W/frame Parts |
|
$ 453.86 | |||||
| 2 | 154662601 | Strike-door (Replaces: 154211601) |
|
Immediately | $ 39.69 | ||||
| 3 | 8581548276014 | Gasket-tub (Replaces: 154211801) |
|
Immediately | $ 26.30 | ||||
| 4 | 154200602 | Screw,10-16 X 3/8 ,hex |
|
$ 10.21 | |||||
| 5 | 5304507405 | Roller-tub (Replaces: 154080001) |
|
Immediately | $ 25.79 | ||||
| 6 | 5303943103 | Screw W/washer,(8) |
|
Immediately | $ 17.72 | ||||
| 22 | 5304523457 | Tubing-water Inlet (Replaces: 154239801) |
|
Immediately | $ 14.03 | ||||
| 23 | 5304538466 | Clamp-tubing,(2) (Replaces: 5303318539) |
|
$ 2.31 | |||||
| 24 | 154225602 | Hose-drain |
|
Immediately | $ 45.37 | ||||
| 25 | 5304532207 | Float (Replaces: 154209701) |
|
Immediately | $ 6.89 | ||||
| 28 | 154225501 | Switch,float |
|
$ 84.68 | |||||
| 29 | 154290204 | Thermostat,re-settable |
|
Immediately | $ 64.49 | ||||
| 30 | 154241101 | Retainer,thermostat |
|
$ 3.62 | |||||
| *49851 | 154297701 | Screw,retainer-thermo |
|
$ 13.46 | |||||
| *49852 | 154041001 | Screw,plask 1 ,10-10 X 9/16 |
|
- | |||||
| *49853 | 154238305 | Insulation |
|
- | |||||
| *49854 | 154249401 | Dampener-tub, Front |
|
- | |||||
| *49855 | 154249402 | Dampener-tub, Back |
|
- | |||||
| 28A | 154773201 | Bracket-float Switch (Replaces: 154209801) |
|
Immediately | $ 55.29 | ||||
| 28B | 134154100 | Screw-10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 |
