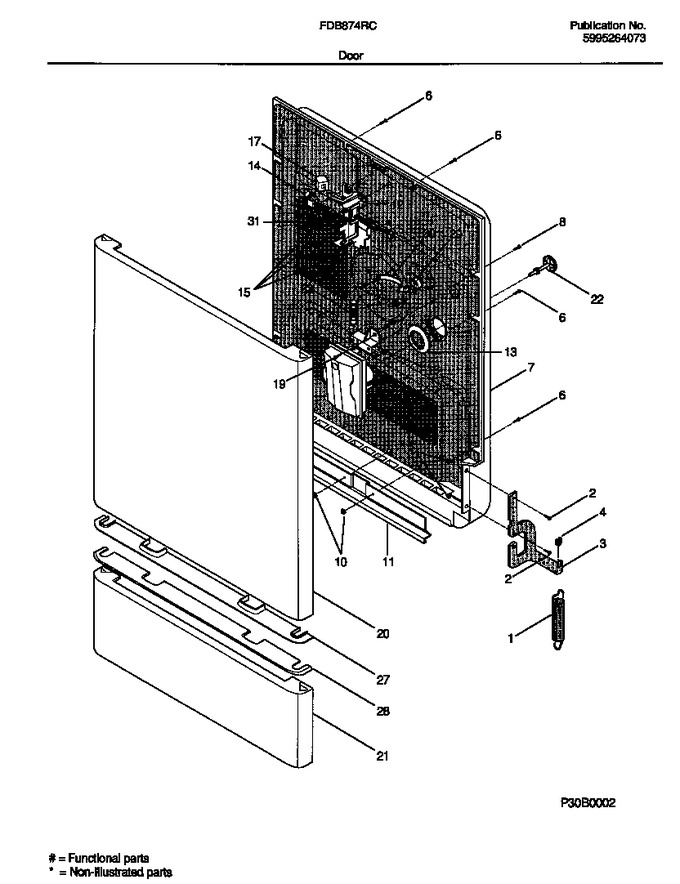

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154128601		Spring-door, (2)		Appelez-nous	-
2	154093301		Screw-arm Assy			Immediately	$ 2.12
3	5303270031		Arm Assy, Rh & Lh				$ 79.75
4	5300805884		Pad-spring		Appelez-nous	-
5	154079601		Nut-arm Assy				$ 0.41
6	5300809696		Screw-8-18		Appelez-nous	-
7	154184701		Door-inner Assy		Appelez-nous	-
8	5300808749		Screw-control Pnl Mtg		Appelez-nous	-
9	5300806753		Body-dispenser				$ 69.93
10	154026601		Speednut-baffle				$ 25.67
11	5300809773		Baffle Seal		Appelez-nous	-
12	154132507		Latch Assy		Appelez-nous	-
13	5300805631		Grommet-rinse Agent				$ 6.29
14	154105301		Switch-door Latch				$ 21.63
15	218781101		Screw-8-18 X 5/8   (Replaces: 154026501)				$ 15.60
16	5300809782		Bi-metal-rinse Disp				$ 47.51
17	5303270210		Knob-latch-white		Appelez-nous	-
19	5300807501		Screw-bi-metal Assy		Appelez-nous	-
20	154087601		Panel-outer Dr, White		Appelez-nous	-
21	154087701		Panel-access Dr, White		Appelez-nous	-
22	154121401		Plug-fill		Appelez-nous	-
23	5300806757		Plunger				$ 49.30
25	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
27	154189401		Trim-dr Bottom White		Appelez-nous	-
28	154190301		Trim-access Top-white		Appelez-nous	-
29	5303297402		Thermostat		Appelez-nous	-
30	5300809097		Retainer-thermostat		Appelez-nous	-
31	154142901		Cover-switch		Appelez-nous	-
*56562	154202601		Screw-latch Knob		Appelez-nous	-
*56563	154144401		Clip-attach, (8)		Appelez-nous	-
*56564	154149501		Clip-u Type				$ 5.30
*56565	5303292255		Terminal		Appelez-nous	-
*56566	5303212479		Screw-terminal		Appelez-nous	-
*56567	154200601		Screw-10-16 X 3/8				$ 7.98

    View Diagram in Separate Window       Print Part List
