Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5300809972 Front Frame Assy Appelez-nous -
2 154200601 Screw-10-16 X 3/8 Special Order $ 7.98

3 5303297420 Valve-water Special Order $ 254.42

4 5303286368 Brace-front Appelez-nous -
5 154144601 Switch-float Appelez-nous -
6 154201001 Screw-float Switch, (2) Appelez-nous -
7 5300804672 Screw-relay Appelez-nous -
8 5300809303 Toeplate-adjustable Appelez-nous -
9 5300809765 Toeplate Special Order $ 58.70

10 154419403 Screw,8a X .375``   (Replaces: 5300808658) Special Order $ 13.10

11 134154100 Screw-10-32 X 3/8   (Replaces: 154200701) Special Order $ 13.46

12 154192701 Relay-motor Appelez-nous -
13 154145501 Band/clip Assy Appelez-nous -
14 154089301 Power Relay Assy Special Order $ 235.36

15 154026101 Screw-leveling Appelez-nous -
16 5303211181 Frame-rear Appelez-nous -
17 154112901 Bracket-junction Box Appelez-nous -
20 08057593 Cover-junction Box Appelez-nous -
*56572 5300807373 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

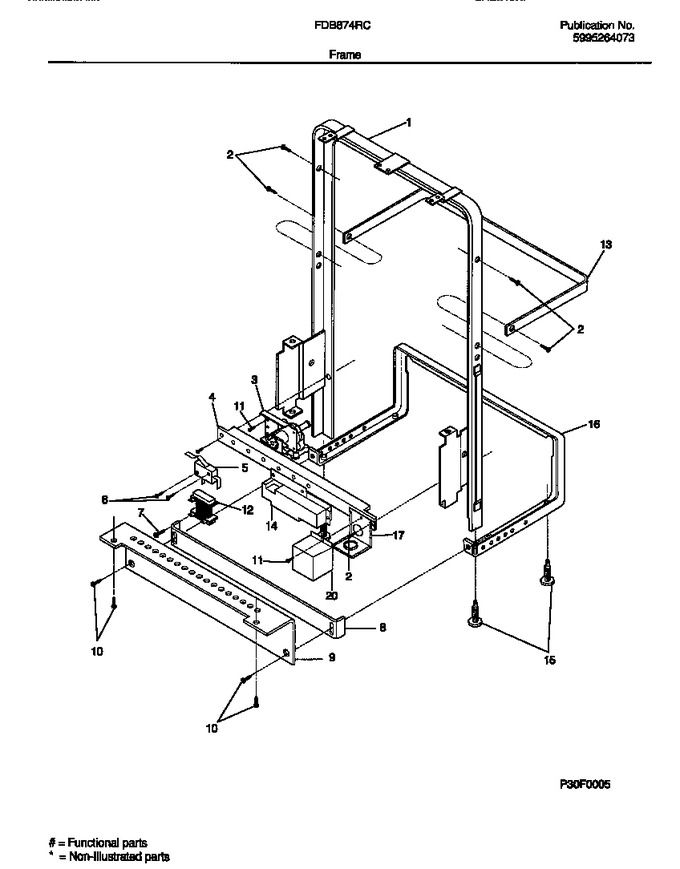

Diagram for FDB874RCS0
