Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316009230 Panel-manifold Appelez-nous -
2 5303209616 Knob-top Valve-3 Pos Appelez-nous -
3 316010901 Cap Burner Special Order $ 69.01

4 5303285701 Main Top (almond) Appelez-nous -
5 316011400 Pan-burner, (4) Appelez-nous -
6 318228310 Grate (4)   (Replaces: 5303269632) In-Stock Immediately $ 22.91

7 316032411 Thermostat   (Replaces: 5303271464) In-Stock Immediately $ 165.14

8 3205115 Knob, Thermostat Appelez-nous -
9 5303273063 Hinge Assy-lh-main Top Special Order $ 48.41

10 5303273062 Hinge Assy-rh-main Top Appelez-nous -
11 5303281650 Screw-burner Appelez-nous -
12 316035101 Trim-ring Appelez-nous -

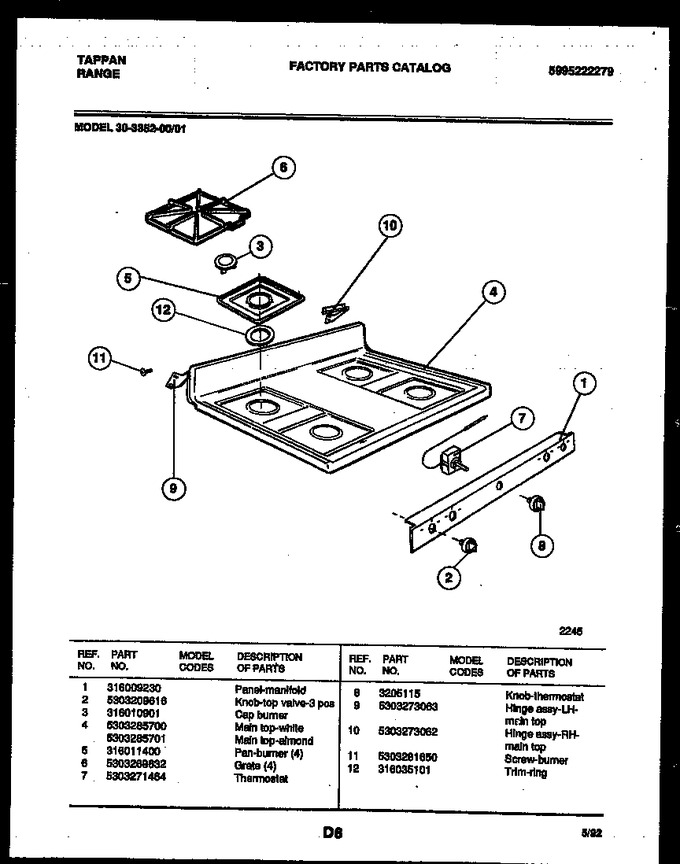

    View Diagram in Separate Window     Print Icon   Print Part List
