View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts

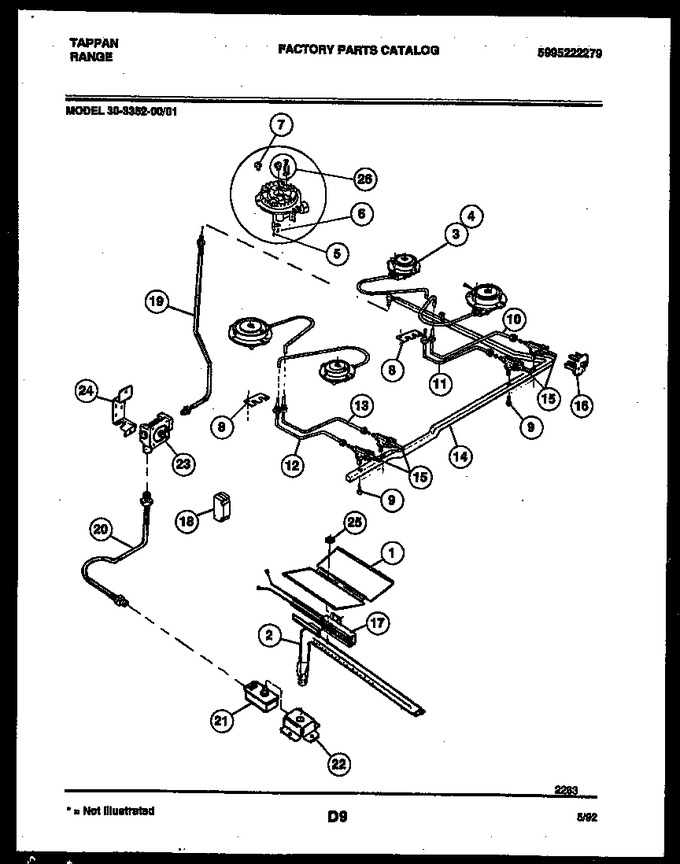

06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203265 | Baffle-oven |
|
- | |||||
| 2 | 3131439 | Burner-oven |
|
$ 204.59 | |||||
| 3 | 316010600 | Burner Top Complete (4) |
|
- | |||||
| 4 | 316010700 | Burner-top, (4) |
|
- | |||||
| 5 | 316011200 | Igniter-top & Brkt (4) |
|
Immediately | $ 38.68 | ||||
| 6 | 316011100 | Screw-igniter Top Brkt (4) |
|
$ 3.41 | |||||
| 7 | 5303210090 | Orifice (4) |
|
$ 54.18 | |||||
| 8 | 5303269491 | Plate-burner Tube |
|
- | |||||
| 9 | 5303269845 | Screw-top Burner |
|
- | |||||
| 10 | 5303269492 | Burner Tube-rf |
|
- | |||||
| 11 | 5303269494 | Burner Tube-rr |
|
- | |||||
| 12 | 5303269493 | Burner Tube-lf |
|
- | |||||
| 13 | 5303269495 | Burner-tube Lr |
|
- | |||||
| 14 | 5303271375 | Manifold Pipe |
|
- | |||||
| 15 | 316020400 | Valve-top Burner |
|
$ 117.44 | |||||
| 16 | 316032000 | Switch-igniter, (4) |
|
$ 58.70 | |||||
| 17 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 18 | 5304505695 | Spark Module (Replaces: 5303280394) |
|
Immediately | $ 68.16 | ||||
| 19 | 5303208495 | Tubing-reg/manif Pipe W/ Fitting |
|
- | |||||
| 20 | 5303271611 | Tubing-cntrl Safety-valve W/ Fitting |
|
- | |||||
| 21 | 3203459 | Valve-safety |
|
$ 303.64 | |||||
| 22 | 3131438 | Bracket, Valve |
|
- | |||||
| 23 | 5303280582 | Control-regul |
|
- | |||||
| 24 | 08067934 | Brkt. Regul. |
|
- | |||||
| 25 | 154079601 | Nut-baffle (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 26 | 5303286386 | Lp-conversion Kit |
|
$ 143.29 | |||||
| 25A | 3018603 | Brkt Oven Burner Supt (non-illustrated) |
|
- |
