View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

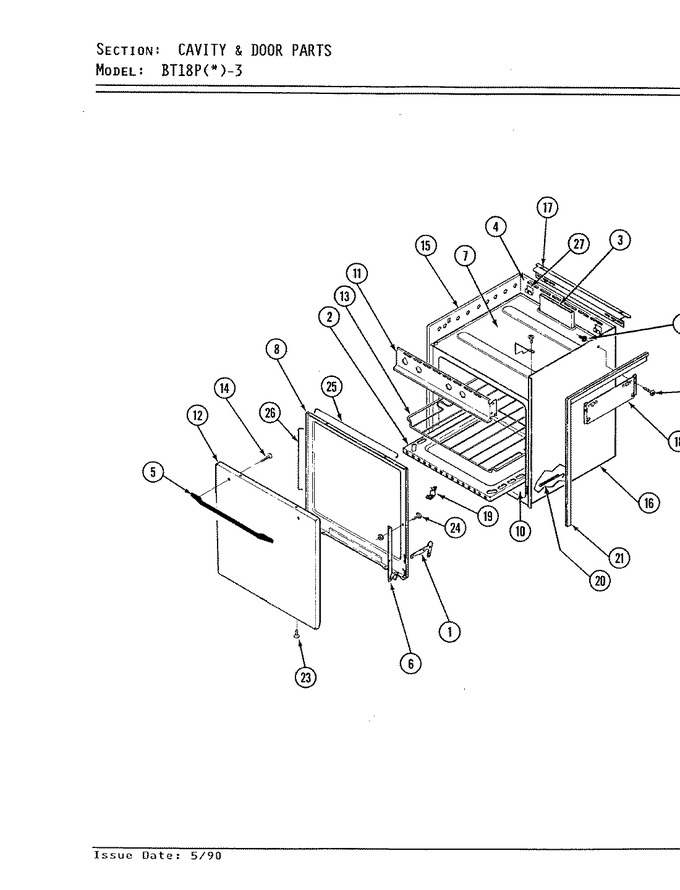

01 - Cavity & Door
02 - Main Top & Burner Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3423F001-34 | Arm, Spring |
|
$ 7.41 | |||||
| 2 | 2205F016-23 | Bottom, Oven |
|
- | |||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P064-60) |
|
Immediately | $ 6.85 | ||||
| 2 | 7112P065-60 | Clip, Oven Bottom |
|
- | |||||
| 3 | 4006W075-80 | Flue Box Assy |
|
- | |||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P064-60) |
|
Immediately | $ 6.85 | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) |
|
Immediately | $ 6.85 | ||||
| 4 | 4002F085-80 | Back, Main |
|
- | |||||
| 5 | 7701P170-60 | Handle, Door |
|
- | |||||
| 6 | 3418A059-34 | Hinge, Door (lt) |
|
- | |||||
| 6 | 3418A058-34 | Hinge, Door (rt) |
|
- | |||||
| 7 | 4011F153-51 | Bottom, Burner Box |
|
- | |||||
| 8 | 2402F129-23 | Lining, Door |
|
- | |||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) |
|
Immediately | $ 6.85 | ||||
| 9 | 7103P109-60 | T-nut (rv Hinge) |
|
- | |||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P064-60) |
|
Immediately | $ 6.85 | ||||
| 10 | 4011F125-51 | Bottom, Main |
|
- | |||||
| 11 | 2616F053-70 | Panel, Manifold |
|
- | |||||
| 12 | 2401F074-74 | Panel, Oven Door Almond |
|
- | |||||
| 13 | 7801P027-60 | Rack |
|
- | |||||
| 14 | 7101P231-60 | Screw |
|
- | |||||
| 15 | 4016F016-80 | Side Body-lf |
|
- | |||||
| 16 | 4016F017-80 | Side Body-rt |
|
- | |||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) |
|
Immediately | $ 6.85 | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P064-60) |
|
Immediately | $ 6.85 | ||||
| 17 | 3604F125-70 | Shield, Deflector Flue |
|
- | |||||
| 18 | 3604F126-51 | Shield, Side Heat |
|
- | |||||
| 19 | 7112P053-60 | Clip, Capillary |
|
- | |||||
| 20 | 7803P052-60 | Spring, Oven Door |
|
- | |||||
| 21 | 3608F013-70 | Trim, Left Black |
|
- | |||||
| 21 | 3608F014-70 | Trim, Right Black |
|
- | |||||
| 22 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) |
|
$ 4.29 | |||||
| 23 | 7101P110-60 | Screw, Door Panel |
|
- | |||||
| 24 | WP7101P126-60 | Screw, No.10-16ab (Replaces: 7101P221-60) |
|
Immediately | $ 6.85 | ||||
| 25 | 2418F004-60 | Seal, Door Top |
|
- | |||||
| 25 | WP7212P006-60 | Strap, Seal-top (Replaces: 2207F015-50) |
|
$ 105.81 | |||||
| 26 | 2418F001-60 | Seal, Door-side |
|
- | |||||
| 26 | 2207F014-50 | Strap, Seal-side |
|
- | |||||
| 27 | 7112P071-60 | Clip, Main Top Rear |
|
- |
