SELECT A DIAGRAM

01 - Cavity & Door

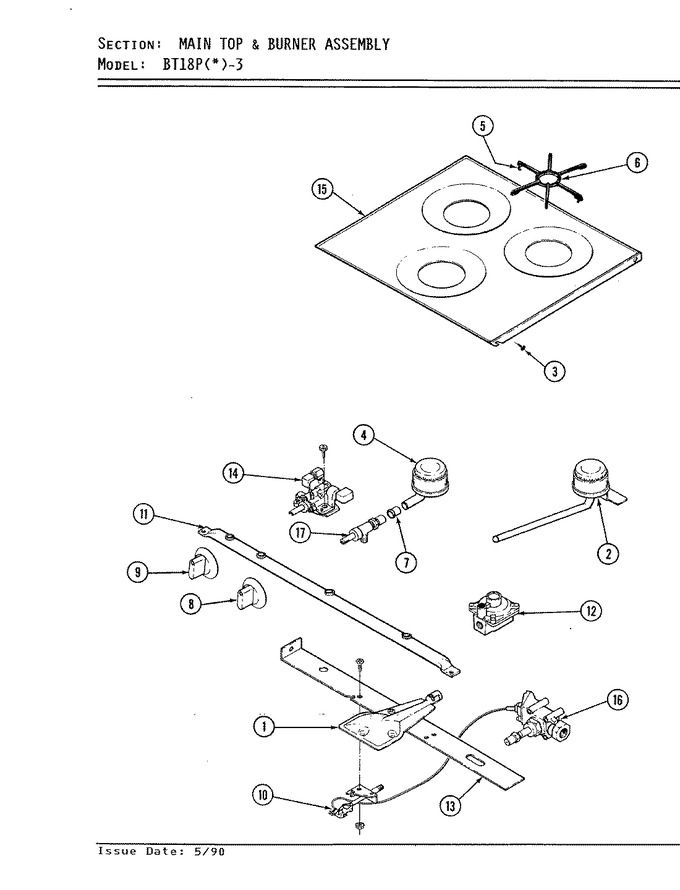

02 - Main Top & Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3403W003-45		Burner, Assembly Oven		Appelez-nous	-
2	7505P143-60		Burner, Assy L.r.		Appelez-nous	-
3	8003P008-60		Bumper		Appelez-nous	-
4	7505P142-60		Burner, Assy Front		Appelez-nous	-
5	7112P066-60		Clip, Grate		Appelez-nous	-
6	2003F004-00		Grate Top		Appelez-nous	-
7	7214P015-60		Insert, Burner		Appelez-nous	-
8	7733P039-60		Knob, Valve		Appelez-nous	-
9	7731P035-60		Knob, Thermostat		Appelez-nous	-
10	968-143		Pilot, Oven		Appelez-nous	-
11	7513P097-60		Pipe Manifold		Appelez-nous	-
12	7510P031-60		Regulator, Pressure		Appelez-nous	-
12	7507P045-60		Half Union		Appelez-nous	-
12	7507P050-60		Fitting, 1/8`` Hex Nipple		Appelez-nous	-
13	3807F320-45		Support, Oven Burner		Appelez-nous	-
14	7515P024-60		Thermostat		Appelez-nous	-
14	1555280K		Nut & Ferrule 1/4`` Kit		Appelez-nous	-
14	7507P049-60		Flange, T Stat		Appelez-nous	-
14	3414F079-44		Tubing, 1/4``- Odx42 1/2		Appelez-nous	-
14	1555222		Nut, Loxit (3/16``)		Appelez-nous	-
15	2001F056-81		Top, Main (white)		Appelez-nous	-
15	3414F080-44		Tubing (3/16 X 42``)		Appelez-nous	-
15	2001F056-84		Top, Main (almond)		Appelez-nous	-
16	1555279		Nut, 1/4`` Loxit		Appelez-nous	-
16	7501P056-60		Valve, Oven		Appelez-nous	-
16	1555261K		Nut & Ferrule (3/16``)		Appelez-nous	-
17	7502P095-60		Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
