SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum

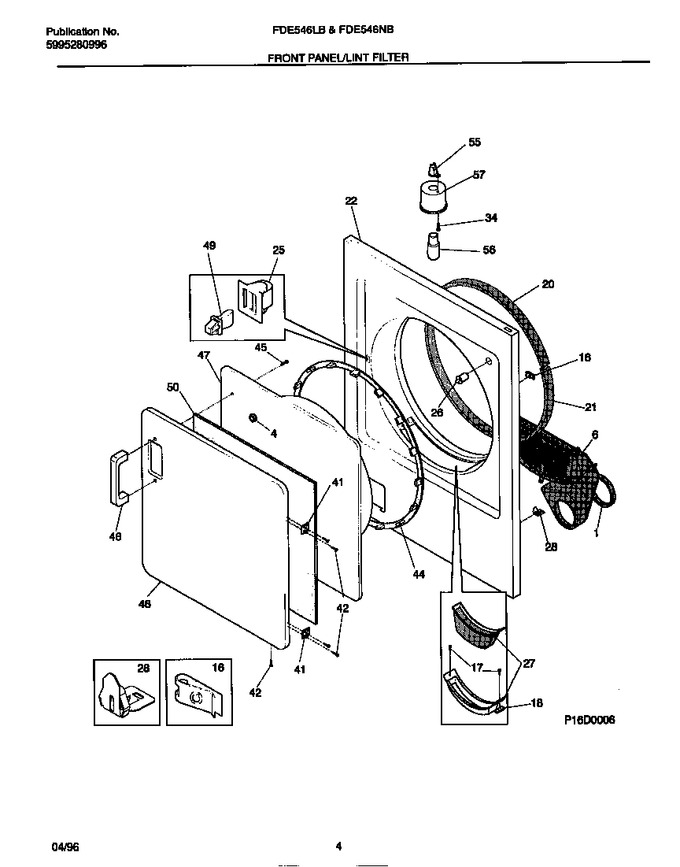

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal-air Duct   (Replaces: 5303281013)			Immediately	$ 9.22
4	3201205		Spacer-door		Appelez-nous	-
6	131193100		Duct-air		Appelez-nous	-
16	131063700		Clip-wiring				$ 18.11
17	131420300		Screw-lint Frame, Cr Truss Head, 8-18ab X 0.750				$ 13.46
18	3281061		Clip-lint Frame				$ 2.73
20	DE790		Glide-drum   (Replaces: 131154800)			Immediately	$ 40.53
21	5303281049		Seal-basket, Lower				$ 38.12
22	131003412		Panel, Front, White		Appelez-nous	-
25	5366021400		Catch, Door   (Replaces: 5307521419)			Immediately	$ 55.99
26	08006623		Switch, Door		Appelez-nous	-
27	131390300		Lint Trap & Frame		Appelez-nous	-
28	5303281074		Clip-guide,(3)				$ 18.27
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
41	5303281050		Hinge-door				$ 20.58
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
44	5303201210		Gasket, Door				$ 45.68
45	5303281051		Screw-handle, Cr 2 Oval Head, 8-18 X 0.75, Special/hi-l				$ 4.52
46	131192301		Handle-door-white		Appelez-nous	-
47	5303318706		Door-inner, White		Appelez-nous	-
48	5303299161		Panel-outer Door, White		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	5303281067		Shield, Heat		Appelez-nous	-
55	5308015210		Receptacle				$ 61.40
56	5308027430		Lamp				$ 18.85
57	5308015259		Holder-lamp				$ 54.32

    View Diagram in Separate Window       Print Part List
