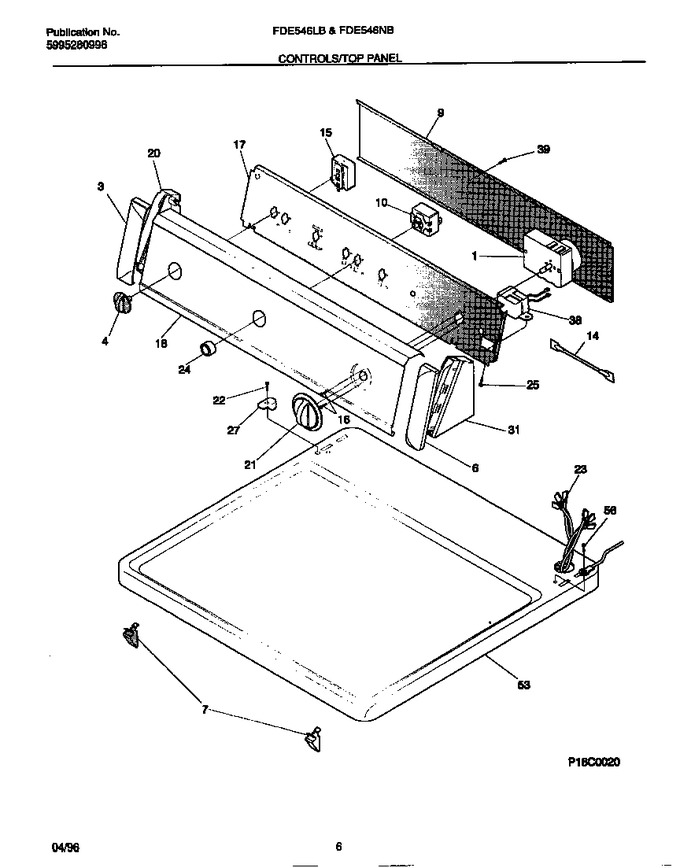

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer   (Replaces: 131063200)			Immediately	$ 269.37
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141101		Knob-rotary, White/blue		Appelez-nous	-
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	131048000		Switch-push/start		Appelez-nous	-
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131297306		Bracket-controls		Appelez-nous	-
18	131280000		Panel-control-white		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	134011703		Knob, Timer, White   (Replaces: 131141001)			Immediately	$ 58.56
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131501700		Harness		Appelez-nous	-
24	131111501		Knob-start Switch, White				$ 13.79
25	5303015671		Screw		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
38	5303210285		Buzzer				$ 65.78
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131130402		Panel, Top, White		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
*33681	5303281103		Tie-harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
