View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

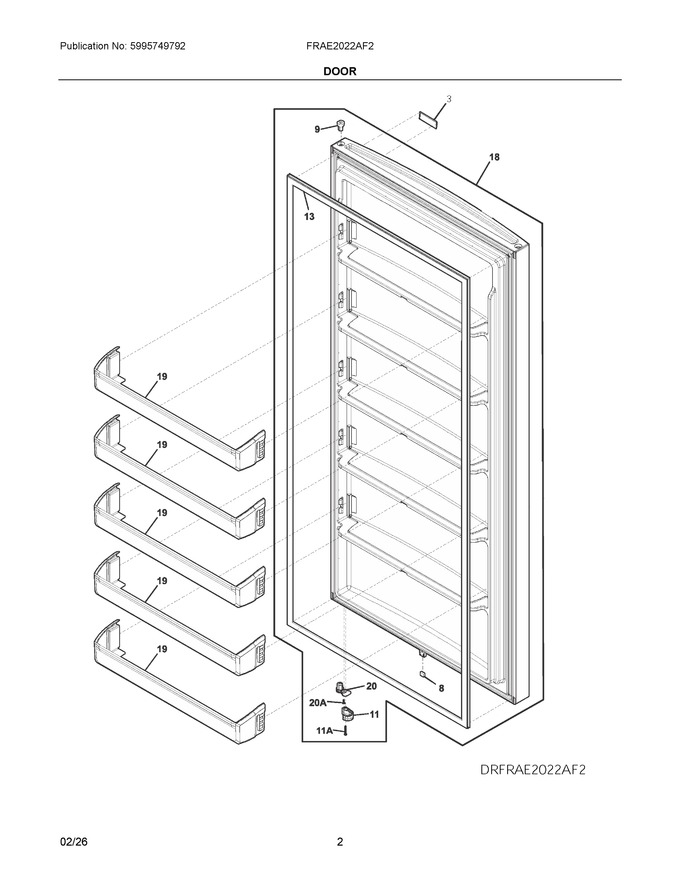

02 - Door
03 - Cabinet
04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 8 | 140026775019 | Sensor, Magnet, Switch, Reed |
|
$ 4.11 | |||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.28 | ||||
| 11 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 8.34 | ||||
| 13 | 140190906879 | Gasket, Door, Grey (Replaces: 5304524888) |
|
$ 111.73 | |||||
| 18 | 140210833129 | Door Assembly Complete, Refrigerator, Stainless |
|
$ 759.42 | |||||
| 19 | 140122140035 | Shelf Door |
|
- | |||||
| 20 | 5304530176 | Bearing, Door, Gray, Lower |
|
- | |||||
| 11A | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 20A | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 |
