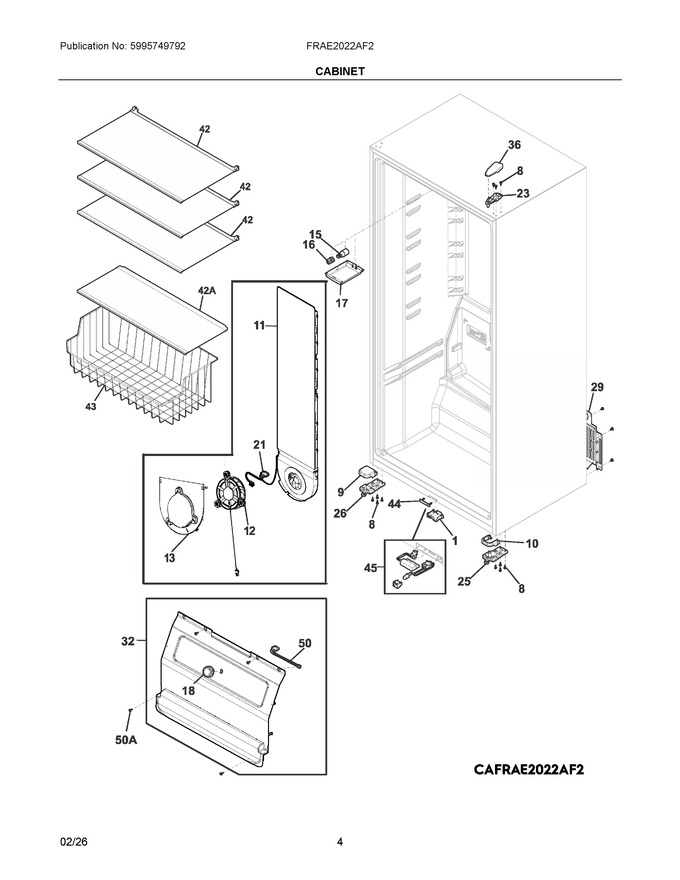

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 7.96 | ||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 5304522221 | Cover, Hinge, Gray, Lower, Non-hinged |
|
Immediately | $ 5.07 | ||||
| 10 | 5304522246 | Cover, Hinge Side, Gray, Lower |
|
Immediately | $ 4.47 | ||||
| 11 | 140123717062 | Air Tower, Assembly |
|
$ 137.43 | |||||
| 12 | 140213829033 | Fan Assembly, Motor, Evaporator |
|
Immediately | $ 49.81 | ||||
| 13 | 5304523722 | Mount-fan, Evaporator |
|
Immediately | $ 18.79 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304530650 | Socket, Light, Led |
|
Immediately | $ 10.01 | ||||
| 17 | 5304536791 | Lens, Light |
|
- | |||||
| 18 | 140138989029 | Knob, Temperature, Control |
|
- | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats (Replaces: 5304521790) |
|
Immediately | $ 38.56 | ||||
| 23 | 5304537471 | Hinge, Upper |
|
$ 5.27 | |||||
| 25 | 5304529045 | Hinge-bottom, Assembly, Rh, W/foot-closer |
|
$ 45.55 | |||||
| 26 | 5304523747 | Hinge-bottom, Assembly, Lh Non Hinged, W/foot |
|
$ 41.21 | |||||
| 29 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 55.67 | |||||
| 32 | 140205330057 | Cover Assembly, Evaporator, Lower Cabinet |
|
- | |||||
| 36 | 5304530085 | Cover, Hinge, Gray, Upper |
|
$ 6.95 | |||||
| 42 | 5304536377 | Glass Shelf, Assembly, 26.7" U20, 42, W/trim (Replaces: 5304524074) |
|
Immediately | $ 51.45 | ||||
| 43 | 140281739031 | Lower Basket, Wire Shelf |
|
- | |||||
| 44 | 140155478039 | Cover, Reed Switch, Lower Cabinet |
|
- | |||||
| 45 | 5304523755 | Reed Switch Harness, Assembly, W/led Light |
|
Immediately | $ 75.19 | ||||
| 50 | 5304523789 | Harness, Potentiometer |
|
Immediately | $ 22.29 | ||||
| 42A | 5304536378 | Shelf Assembly, Glass, Small, W/trim (Replaces: 5304524026) |
|
$ 38.90 | |||||
| 50A | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 6.51 | |||||
| NI | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NIA | 5304530289 | Cover, Eps, Potentiometer |
|
- | |||||
| NIA | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| NIA | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 |
