View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Door Parts
Liner Parts
Optional Parts
Shelf Parts
Unit Parts
New Model Search:

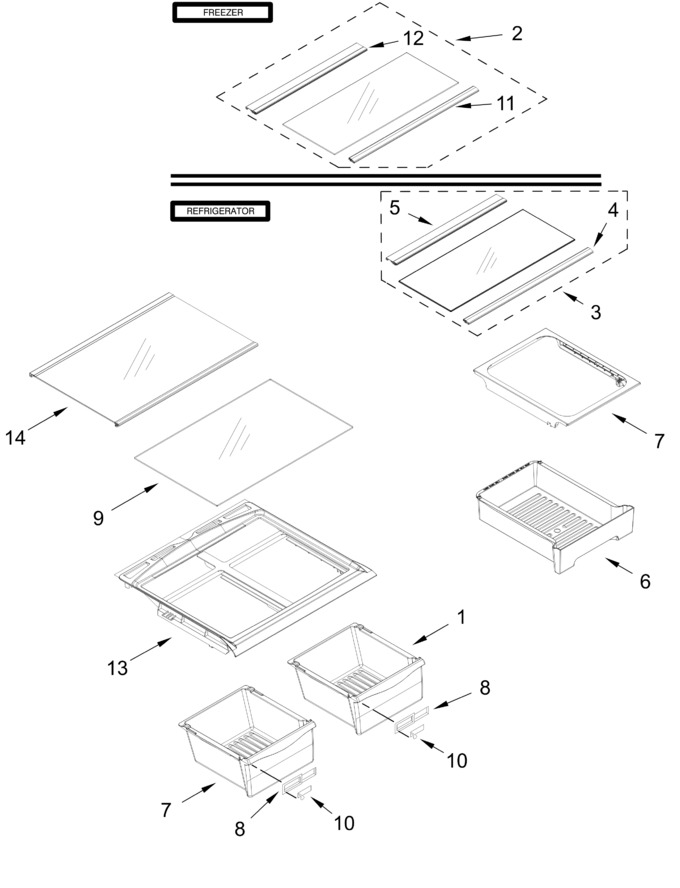

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256704 | Pan, Crisper (Replaces: 2256704) |
|
Immediately | $ 127.50 | ||||
| 2 | W11105826 | Shelf, Glass (fc) (Replaces: W10847320) |
|
$ 201.68 | |||||
| 3 | W11669621 | Glass Shelf, Meat Pan (Replaces: W11596625) |
|
$ 187.76 | |||||
| 4 | W11596624 | Trim Shelf, Front |
|
- | |||||
| 5 | W10804343 | Trim Shelf, Rear |
|
- | |||||
| 6 | W11256433 | Pan, Meat (Replaces: W10815714) |
|
$ 122.16 | |||||
| 7 | W11679644 | Holder, Meat Pan (Replaces: W10814193) |
|
$ 38.57 | |||||
| 8 | W11819839 | Body, Humidity Control (Replaces: W11755120) |
|
$ 13.55 | |||||
| 9 | WP2262441 | Glass, Shelf (Replaces: 2324035) |
|
Immediately | $ 199.65 | ||||
| 10 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 11 | W10847166 | Trim, Shelf Front |
|
- | |||||
| 12 | W10847182 | Trim, Shelf Rear |
|
- | |||||
| 13 | WP2222031 | Cover, Crisper (Replaces: 2222031) |
|
Immediately | $ 223.07 | ||||
| 14 | W11669622 | Shelf, Glass (rc) (Replaces: W11184842) |
|
Immediately | $ 187.91 |
