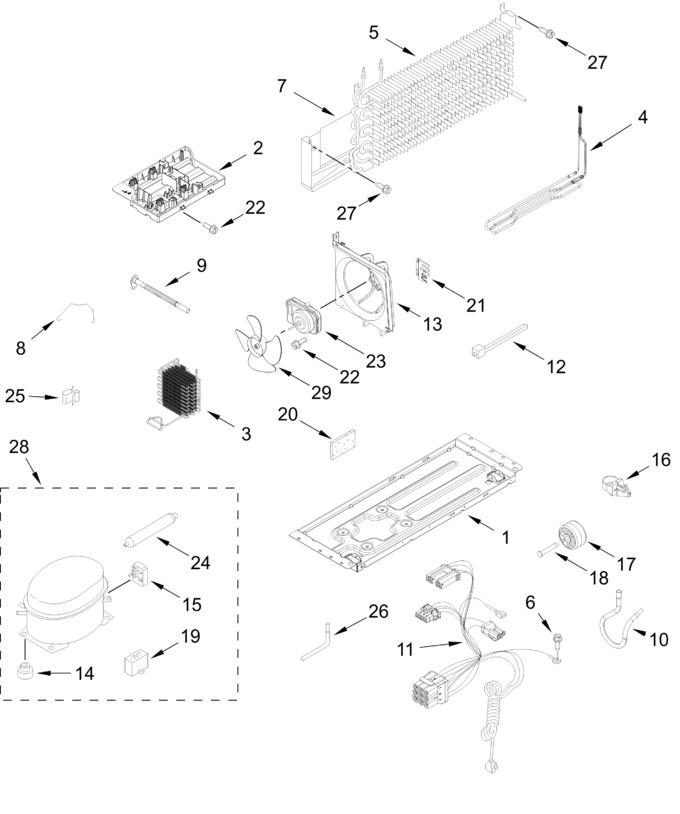

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11758153 | Support Plate, Compressor (Replaces: W11620973) |
|
- | |||||
| 2 | W10565417 | Tray, Evaporator |
|
$ 32.88 | |||||
| 3 | W11722672 | Condenser (Replaces: W11627779) |
|
$ 240.21 | |||||
| 4 | W11579349 | Heater, Defrost (Replaces: W11339349) |
|
Immediately | $ 100.52 | ||||
| 5 | W11579351 | Evaporator Assembly (Replaces: W11497963) |
|
Immediately | $ 183.52 | ||||
| 6 | 8533919 | Screw |
|
- | |||||
| 7 | W10570572 | Shield, Heat |
|
$ 28.11 | |||||
| 8 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 9 | W10582029 | Extension, Drain Tube |
|
- | |||||
| 10 | W11518247 | Tube, Suction |
|
- | |||||
| 11 | W11677726 | Harness, Unit (Replaces: W11238411) |
|
$ 63.90 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 13 | WPW10570380 | Scroll, Fan (Replaces: W10570380) |
|
$ 68.36 | |||||
| 14 | W11678963 | Compressor Grommet (Replaces: W10806346) |
|
$ 7.29 | |||||
| 15 | W11547180 | Start Device, Combination (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 34.05 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 17 | WPW10475495 | Roller, Cabinet (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 6.47 | |||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 20 | W11553819 | Sound Insulation (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 21 | W11340313 | Bracket, Evaporator |
|
$ 64.59 | |||||
| 22 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 23 | W11578915 | Motor, Condenser Fan (Replaces: W11546724) |
|
Immediately | $ 64.28 | ||||
| 24 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 25 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.37 | ||||
| 26 | W11461499 | Tube, Process |
|
$ 55.72 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 28 | W11580057 | Compressor (Replaces: W11706878) |
|
Immediately | $ 342.99 | ||||
| 29 | W11204896 | Blade, Fan (Replaces: W10675036) |
|
$ 87.25 | |||||
| ARI9B437A9AB478C7E2DEB1C4CC29D600EE | (capillary Tube To Evaporator) |
|
- | ||||||
| W11504430 | 7/6 Nr Ms 00 |
|
Immediately | $ 23.26 | |||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARI01A2781A3F964B0DAEAA0FEA5F13BC43 | (suction Line To Evaporator) |
|
- | ||||||
| ARI169E995E2DAC0D79856EDDCD3C362715 | (suction Tube To Compressor) |
|
- | ||||||
| ARI8F052732CB60E39F6CA094A8168A5109 | (process Tube To Compressor) |
|
- | ||||||
| ARIF479D1A0D17290EA712C859BF2E1C691 | (high Side To Condenser) |
|
- | ||||||
| ARI3031A698A6B8030D731C976AE04824C1 | (high Pressure Side To Compressor) |
|
- | ||||||
| W11506619 | 8 Nk Ms 00 |
|
Immediately | $ 22.19 | |||||
| W11504447 | 5/1.8 Nr Ms 00 |
|
Immediately | $ 37.63 | |||||
| W11504445 | 5/4 Nr Ms 00 |
|
Immediately | $ 24.79 | |||||
| W11504415 | 8.5/8 Nr Ms 00 |
|
Immediately | $ 22.19 | |||||
| ARIC14DE50D050CC38FEDB76E9F91CBFC41 | 43 Grams (r600a) |
|
- | ||||||
| W11504432 | 6/5 Nr Ms 00 |
|
Immediately | $ 22.19 | |||||
| W11506620 | 8 Nk Al 00 |
|
Immediately | $ 27.51 | |||||
| W11504450 | 4/1.8 Nr Ms 00 |
|
Immediately | $ 39.87 | |||||
| ARI365422773BD6741F2B56A197441A318E | (heat Loop To Drier) |
|
- | ||||||
| ARI5DD2AEE280966FBC792DC043E4E4B750 | (capillary Tube To Drier) |
|
- | ||||||
| ARIDC3909E200058FAFA59ECDE3D8CD23DE | (suction Line To Condenser) |
|
- | ||||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- |
