01 - Cover Sheet

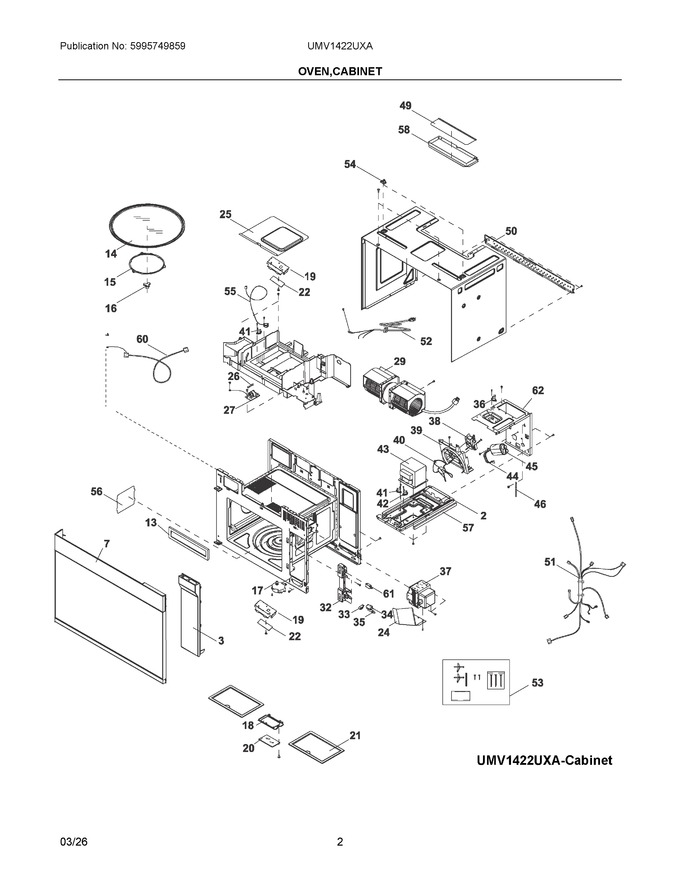

02 - Oven,cabinet
03 - Control Panel,door,misc.
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304513460 | Plate, Hv Transformer, Mounting |
|
- | |||||
| 3 | 5304531686 | Control Assembly, Complete, W/pcb |
|
$ 183.75 | |||||
| 7 | 5304518787 | Door Assembly, Complete, Stainless/black |
|
$ 485.51 | |||||
| 13 | FRPAMRAF | Filter, Charcoal, 2" X 10 (Replaces: 5304464577) |
|
Immediately | $ 37.86 | ||||
| 14 | 5304509621 | Tray, Turntable |
|
$ 154.61 | |||||
| 15 | 5304517881 | Ring, Rotating |
|
Immediately | $ 36.72 | ||||
| 16 | 5304505672 | Shaft, Turntable/motor, Coupler |
|
Immediately | $ 21.59 | ||||
| 17 | 5304509440 | Motor, Turntable |
|
$ 118.13 | |||||
| 18 | 5304509441 | Frame, Lens Holder |
|
- | |||||
| 19 | 5304509442 | Cover, Lamp |
|
$ 59.09 | |||||
| 20 | 5304509443 | Lens, Cooktop Lamp, Glass |
|
- | |||||
| 21 | 5304517871 | Filter, Grease |
|
Immediately | $ 26.91 | ||||
| 22 | 5304517872 | Lamp, Led |
|
Immediately | $ 44.24 | ||||
| 24 | 5304513477 | Guide, Air, Magnetron |
|
$ 21.55 | |||||
| 25 | 5304513485 | Cover, Cavity Lamp |
|
- | |||||
| 26 | 5304509451 | Fuse |
|
Immediately | $ 13.01 | ||||
| 27 | 5304525109 | Filter, Noise, Electronic (Replaces: 5304512523) |
|
$ 86.00 | |||||
| 29 | 5304509624 | Motor, Vent |
|
$ 425.32 | |||||
| 32 | 5304509457 | Latch Hook |
|
Immediately | $ 43.79 | ||||
| 33 | 5304509458 | Lever, Switch |
|
Immediately | $ 10.17 | ||||
| 34 | 5304512529 | Switch, Monitor |
|
Immediately | $ 37.96 | ||||
| 35 | 5304515182 | Switch, Interlock, Secondary |
|
Immediately | $ 34.84 | ||||
| 36 | 5304509469 | Thermostat, 160/95 *v |
|
Immediately | $ 21.78 | ||||
| 37 | 5304509470 | Magnetron, High Voltage |
|
Immediately | $ 436.17 | ||||
| 38 | 5304513476 | Motor, Fan |
|
$ 190.32 | |||||
| 39 | 5304513475 | Guide, Fan |
|
- | |||||
| 40 | 5304517877 | Blade, Fan |
|
$ 5.96 | |||||
| 41 | 5304509474 | Thermostat, Cutout, Transformer |
|
Immediately | $ 20.97 | ||||
| 42 | 5304509475 | Thermostat, Cutout, Vent Motor |
|
Immediately | $ 19.52 | ||||
| 43 | 5304509476 | Transformer, High Voltage |
|
$ 440.36 | |||||
| 44 | 5304513482 | Holder, Hv Capacitor |
|
- | |||||
| 45 | 5304509478 | Capacitor, High Voltage |
|
Immediately | $ 153.84 | ||||
| 46 | 5304509479 | Diode, High Voltage |
|
$ 28.30 | |||||
| 49 | 5304509486 | Damper, Door, Exhaust Adapter |
|
Immediately | $ 27.73 | ||||
| 50 | 5304517880 | Plate, Mounting Brackt |
|
$ 40.78 | |||||
| 51 | 5304518791 | Harness, Wiring, Main |
|
$ 77.97 | |||||
| 52 | 5304512501 | Power Cord, Electric |
|
$ 106.27 | |||||
| 53 | 5304513469 | Mounting Kit |
|
Immediately | $ 62.38 | ||||
| 54 | 5304509436 | Mounting Nut Kit |
|
Immediately | $ 14.71 | ||||
| 55 | 5304509652 | Sensor, Humidity |
|
$ 305.46 | |||||
| 56 | 5304509435 | Cover, Waveguide |
|
$ 13.74 | |||||
| 57 | 5304509482 | Cushion, Foam Pad, Transformer |
|
- | |||||
| 58 | 5304509485 | Adapter, Exhaust, Damper Frame |
|
Immediately | $ 25.32 | ||||
| 60 | 5304504073 | Wire, Connector, Pc Board |
|
$ 130.98 | |||||
| 61 | 5304509460 | Microswitch |
|
Immediately | $ 45.27 | ||||
| 62 | 5304513479 | Duct, Air Guide, Back |
|
- |
