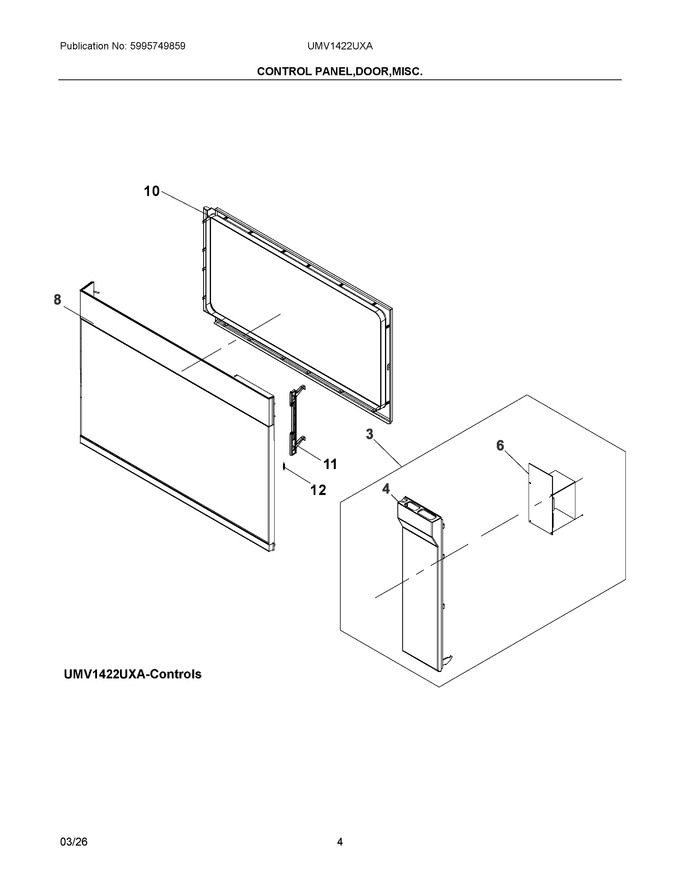

03 - Control Panel,door,misc.
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304531686 | Control Assembly, Complete, W/pcb |
|
$ 183.75 | |||||
| 4 | 5304517866 | Control Cover, Assembly |
|
- | |||||
| 6 | 5304531687 | Pc Board, Control |
|
- | |||||
| 8 | 5304518789 | Door Assembly, Outer, Stainless/black |
|
$ 268.61 | |||||
| 10 | 5304517870 | Gasket, Door |
|
$ 18.43 | |||||
| 11 | 4056021605 | Latch, Door |
|
Immediately | $ 3.69 | ||||
| 12 | 5304521953 | Spring, Door Latch (Replaces: 5304509433) |
|
$ 7.23 |
