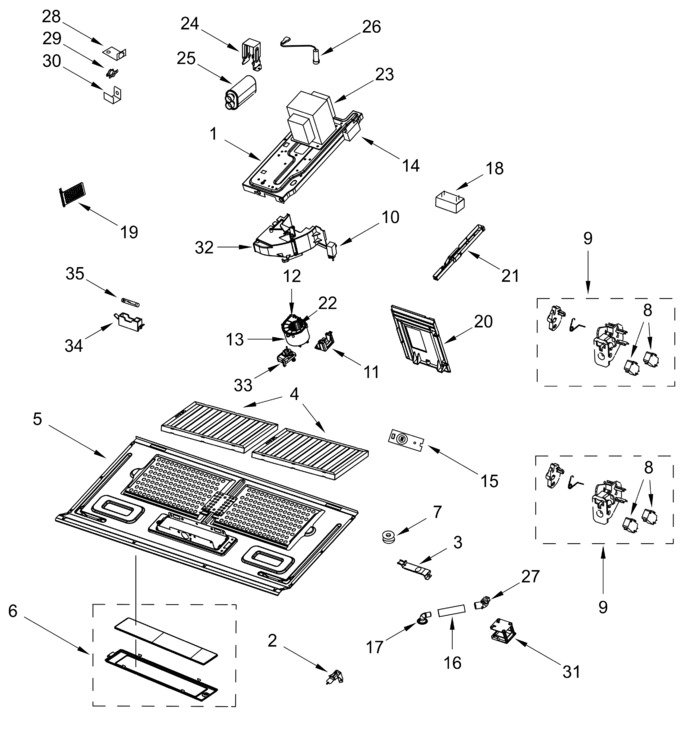

Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10908578 | Chassis |
|
- | |||||
| 2 | W11409090 | Lamp, Halogen |
|
$ 8.57 | |||||
| 3 | W10525853 | Bracket, Smart Pop |
|
- | |||||
| 4 | W11833988 | Filter, Grease (Replaces: W11833450) |
|
- | |||||
| 5 | W10607242 | Plate, Bottom |
|
Immediately | $ 143.19 | ||||
| 6 | W10240330 | Lamp Glass And Holder Assembly |
|
$ 6.47 | |||||
| 7 | W10510237 | Spacer, Smart Pop |
|
- | |||||
| 8 | ARI35D1AB1A8B32BEE7BBE724E1C4F50E27 | Switches, Interlock |
|
- | |||||
| 9 | W11197766 | Assembly, Interlock (includes Switches) (Replaces: W11187757) |
|
Immediately | $ 33.12 | ||||
| 10 | W10458325 | Actuator |
|
$ 83.50 | |||||
| 11 | W10533480 | Holder, Ntc |
|
$ 21.23 | |||||
| 12 | W10533502 | Cover, Cooling Fan |
|
$ 22.71 | |||||
| 13 | W10533501 | Housing, Cooling Fan |
|
Immediately | $ 27.22 | ||||
| 14 | W11405831 | Capacitor, Motor |
|
$ 38.03 | |||||
| 15 | W10536989 | Thermistor |
|
Immediately | $ 33.16 | ||||
| 16 | W10510235 | Tube, Smart Pop Sound |
|
$ 20.55 | |||||
| 17 | W10510234 | Terminal, Smart Pop |
|
$ 20.15 | |||||
| 18 | W11259891 | Resistor, Cement |
|
- | |||||
| 19 | W10533486 | Valve, Door |
|
- | |||||
| 20 | W10533107 | Deflector, Air |
|
- | |||||
| 21 | W10540718 | Bracket, Cavity |
|
$ 27.95 | |||||
| 22 | W10533503 | Wheel, Cooling Fan |
|
$ 29.26 | |||||
| 23 | W11744484 | Transformer, High Voltage (Replaces: W11249660) |
|
$ 123.26 | |||||
| 24 | W11643065 | Bracket, Capacitor |
|
- | |||||
| 25 | W11736651 | Capacitor, High Voltage (Replaces: W10561774) |
|
$ 60.02 | |||||
| 26 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| 27 | W10510233 | Terminal, Pcba Smart Pop |
|
$ 20.17 | |||||
| 28 | W10259248 | Cover, Thermostat |
|
- | |||||
| 29 | W11268275 | Thermostat |
|
$ 74.98 | |||||
| 30 | W11643070 | Clip, Temp Sensor |
|
- | |||||
| 31 | W11416049 | Pcba, Smart Pop (Replaces: W11381433) |
|
$ 237.65 | |||||
| 32 | W10631701 | Air Guide, Magnetron |
|
$ 105.85 | |||||
| 33 | W11230994 | Motor, Cooling Fan (Replaces: W11169357) |
|
Immediately | $ 172.40 | ||||
| 34 | W10245194 | Holder, Fuse |
|
$ 74.84 | |||||
| 35 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| ARI4FC9ED5C3C91C939A2F5256C364FCBC2 | (not Serviced, Order Interlock Assemblies) |
|
- |
