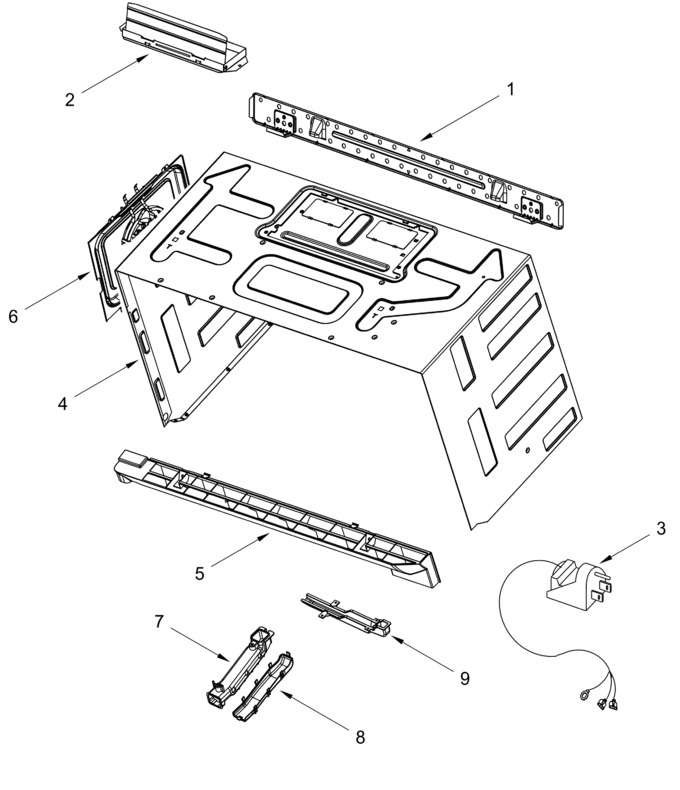

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting			Immediately	$ 21.16
2	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
3	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
4	W11662678		Case, Outer (black)   (Replaces: W11446919)				$ 182.50
5	W10701701		Grille, Vent (black)				$ 71.01
6	WPW10571554		Assembly, Convection Motor And Fan   (Replaces: W10571554)				$ 274.88
7	W10740434		Duct, Cooling (upper)		Appelez-nous	-
8	W10533489		Duct, Cooling (bottom)		Appelez-nous	-
9	W10570212		Air Duct, Turntable Motor		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11833979		Insulation, Top   (Replaces: W11833453)		Appelez-nous	-
	W10821385		Hardware, Installation			Immediately	$ 88.90
	W10190018		Template, Upper (english, French)			Immediately	$ 6.47
	WP8169704		Screw   (Replaces: 8169704)			Immediately	$ 10.07
	ARI2EB13EA73395E08F3EB3E7CF4E6B6B38		Miscellaneous Parts		Appelez-nous	-
	W11833452		Insulation, Bottom		Appelez-nous	-
	W10670896		Harness, Fade In / Fade Out		Appelez-nous	-
	W11833980		Insulation, Back   (Replaces: W11833454)		Appelez-nous	-
	W11833987		Insulation, Right   (Replaces: W11833451)		Appelez-nous	-
	W11483628		Harness, Hood Lamp And Turntable Motor		Appelez-nous	-
	W11302364		Harness, Main				$ 133.50
	W10566562		Cable, Fade In / Fade Out		Appelez-nous	-
	W10566563		Harness, Smart Pop		Appelez-nous	-
	W10508741		Wire, Door Control Cable				$ 20.21
	W10539840		Harness, Acu Ground Wire				$ 21.50

    View Diagram in Separate Window       Print Part List
