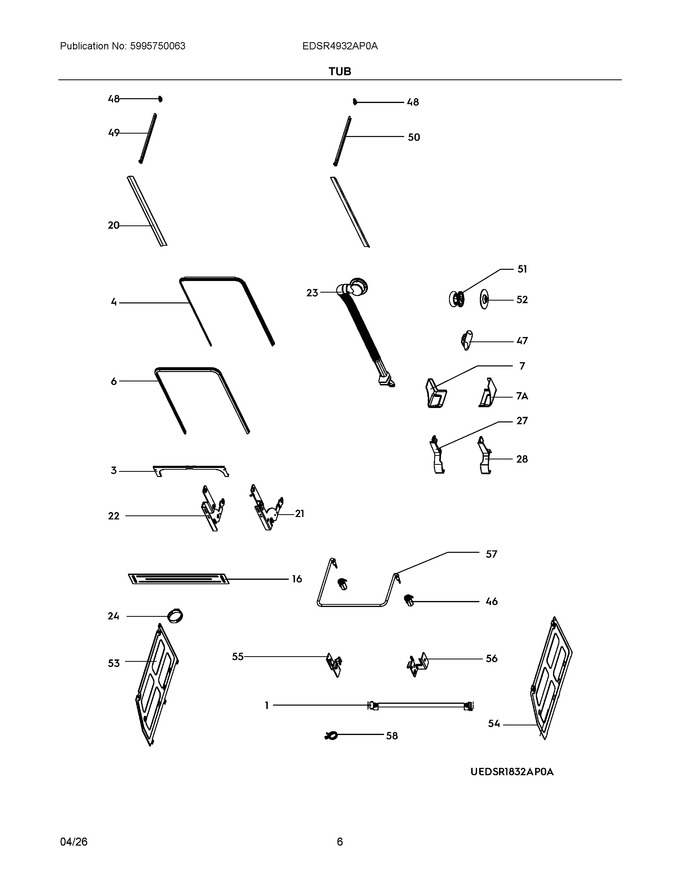

04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056026703		Power Cord, Service		Appelez-nous	-
3	4056035480		Bracket, Top Tub		Appelez-nous	-
4	4056035472		Seal Frame, Tub		Appelez-nous	-
7	4056035282		Bracket, Tub, Lh		Appelez-nous	-
16	4056046263		Base Plate, Lower Plate		Appelez-nous	-
20	4056035464		Strip, Door Protection		Appelez-nous	-
21	4056035266		Hinge, Door, Rh		Appelez-nous	-
22	4056035217		Hinge, Door, Lh		Appelez-nous	-
23	4056035209		Condenser, Water Cooler		Appelez-nous	-
24	5304460970		Clamp, Hose, Otk175, (5)				$ 13.46
27	4056026638		Stopper, Hinge, Left		Appelez-nous	-
28	4056026646		Stopper, Hinge, Right		Appelez-nous	-
46	4056035308		Sleeve, Water Cup		Appelez-nous	-
47	5304537614		Cap		Appelez-nous	-
48	5304519232		Cap, Basket Glide, Rear		Appelez-nous	-
49	5304519233		Glide, Upper Rack, Lh		Appelez-nous	-
50	5304519234		Glide, Upper Rack, Rh		Appelez-nous	-
51	5304519235		Roller, Tub, Upper Rack				$ 59.23
52	5304519236		Holder, Rack Roller		Appelez-nous	-
53	5304519237		Panel, Side, Lh		Appelez-nous	-
54	5304519238		Panel, Side, Rh		Appelez-nous	-
55	5304519239		Bracket, Lh				$ 78.80
56	5304519240		Bracket, Rh				$ 78.80
57	5304519292		Heater Assembly		Appelez-nous	-
58	5304482390		Clamp, Hose, 14.9 X 1.8				$ 17.72
7A	4056035290		Bracket, Tub, Rh		Appelez-nous	-
NI	5304516636		Gasket, Washer, (3)				$ 11.71
NI	4056034822		Damp		Appelez-nous	-
NI	5304519305		Pipe				$ 10.85
