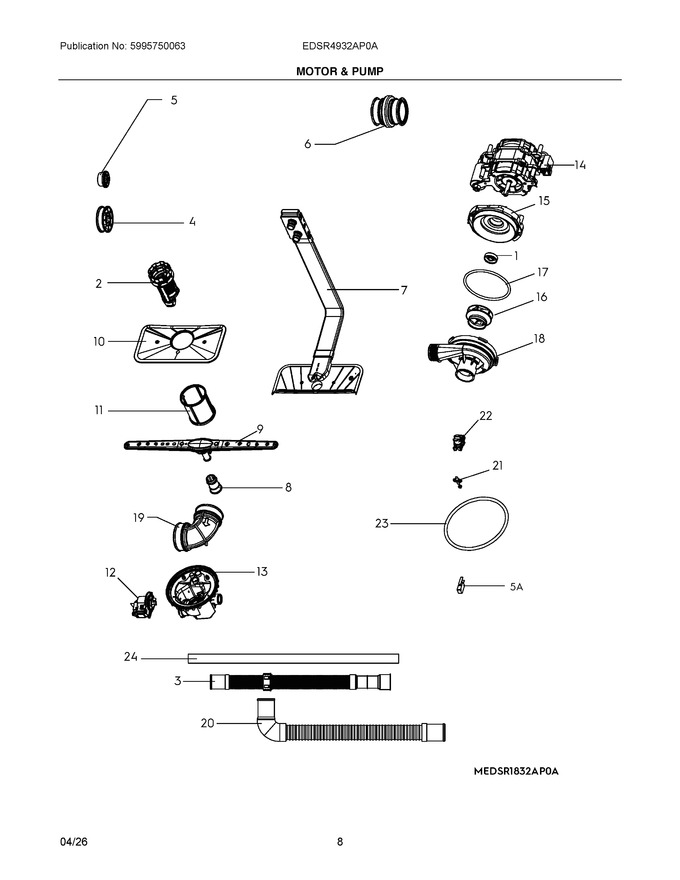

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056035365		Gasket, Lower Pump				$ 7.73
2	4055361499		Handle, Filter		Appelez-nous	-
3	5304525488		Drain Hose, Assembly			Immediately	$ 46.53
4	5304537629		Rope Pulley		Appelez-nous	-
5	5304537631		Pin		Appelez-nous	-
6	5304522083		Tube, Connector, Pump Outlet			Immediately	$ 21.69
7	4056026729		Tube Assembly, Distribution, Inner		Appelez-nous	-
8	5304519266		Support, Spray Arm, Lower				$ 11.57
9	5304519301		Spray Arm, Assembly, Lower			Immediately	$ 103.57
10	4056026760		Filter Assembly, Tub		Appelez-nous	-
11	5304519270		Filter Assembly, Sump		Appelez-nous	-
12	5304519271		Pump Assembly, Water, Synchronous				$ 325.94
13	5304519272		Sump, Assembly				$ 65.59
14	5304519303		Pump Assembly, Water, Induction				$ 194.13
15	5304529119		Casing, Pump, Lower   (Replaces: 5304519274)				$ 39.76
16	5304519275		Impeller, Pump			Immediately	$ 72.43
17	5304519276		O-ring, Pump			Immediately	$ 12.29
18	5304519277		Casing, Pump, Upper				$ 39.76
19	5304519281		Tube, Connector, Pump Inlet			Immediately	$ 17.50
20	5304519304		Hose, Drain, Inner		Appelez-nous	-
21	5304483441		Thermistor			Immediately	$ 43.95
22	5304519282		Thermostat				$ 89.64
23	5304519283		Seal, Sump				$ 17.44
24	5304519284		Tubing, Inlet				$ 10.85
5A	5304516666		Switch, Float				$ 38.12
NI	5304519305		Pipe				$ 10.85
NI	5304519263		Screw, Adjustment, Door Spring		Appelez-nous	-
NIA	5304482390		Clamp, Hose, 14.9 X 1.8				$ 17.72
