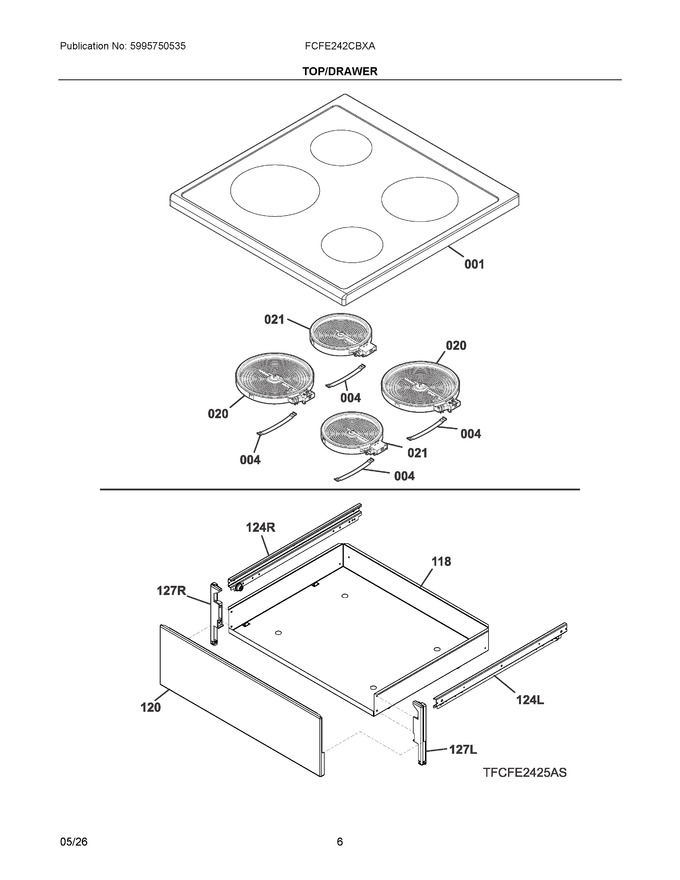

04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	342838447		Smoothtop, Assembly, Glass/steel, Black				$ 297.68
4	561706800		Spring, Radiant Element				$ 9.56
20	A02210501		Element, Radiant, 180mm, 1800w, 240v				$ 237.32
21	140283001026		Element, Radiant, 140mm, 1200w, 240v   (Replaces: A02843501)			Immediately	$ 73.17
118	342175101		Drawer, Tray				$ 103.16
120	342174601		Panel, Drawer Front, Stainless				$ 154.40
124L	342817707		Glide, Drawer, Lh			Immediately	$ 37.37
124R	342817708		Glide, Drawer, Rh			Immediately	$ 41.16
127L	A14042601		Support, Drawer, Lh				$ 21.54
127R	A14042602		Support, Drawer, Rh				$ 21.58
NI	342583401		Holder, Hob		Appelez-nous	-
NIA	342553001		Wheel, Drawer, Back			Immediately	$ 10.72
NIA	356520607		Seal, Cooktop				$ 53.64
NIB	342553101		Wheel, Drawer, Front			Immediately	$ 10.62
