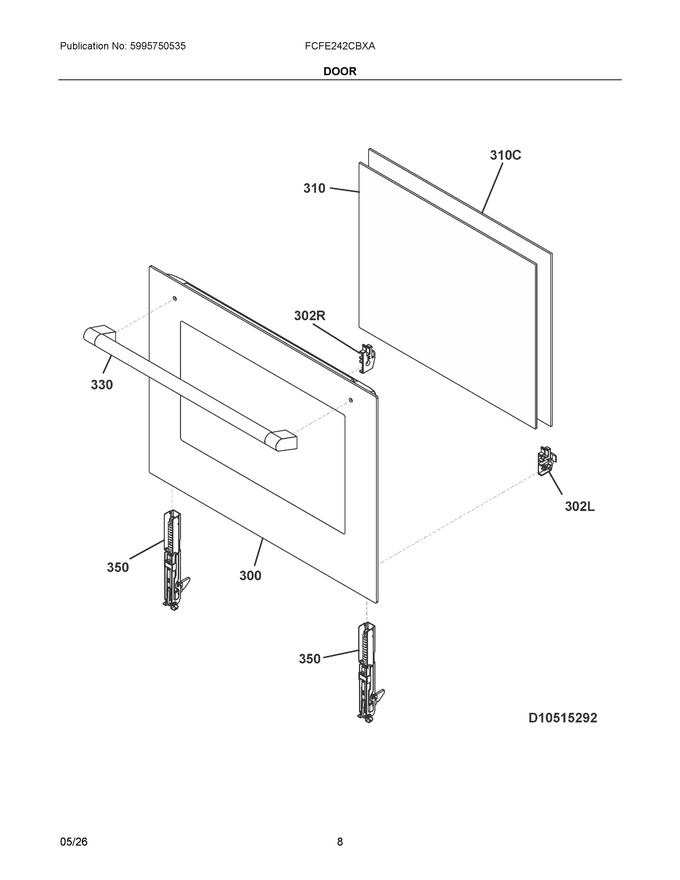

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	342841150		Glass, Outer Door, Black		Appelez-nous	-
310	356150302		Glass, Door, 474x383mm, Inner			Immediately	$ 155.87
330	A11093803		Handle, Assembly, Stainless, Door		Appelez-nous	-
350	A12611602		Hinge, Oven Door			Immediately	$ 104.66
302L	A03195502		Bracket, Glass Holder, Lh				$ 29.78
302R	A03195501		Bracket, Glass Holder, Rh				$ 27.88
310C	342934103		Glass, Door, 490x401.5mm, Inner			Immediately	$ 160.78
