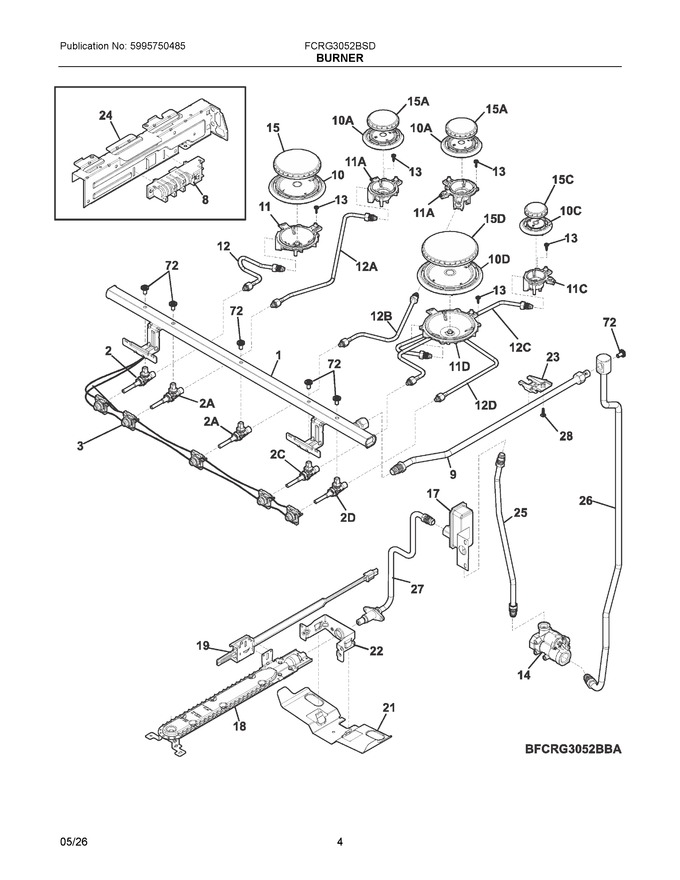

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140141578066		Manifold, Pipe, Burner Valves		Appelez-nous	-
2	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
3	5304533894		Harness, Assembly, Ignition, W/switches				$ 29.15
8	808608804		Spark Module			Immediately	$ 76.06
9	5304535849		Tube, Connection, Manifold To, Regulator Tube		Appelez-nous	-
10	5304537947		Crown, Burner, Large				$ 16.07
11	5304533857		Ignitor/orifice, Assembly, 14k				$ 16.46
12	5304528307		Tube, Burner, Lh Front		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 90.03
15	5304533619		Cap, Burner, Large				$ 40.34
17	140172164018		Valve, Safety, Single Port				$ 90.31
18	5304533840		Burner, Bake			Immediately	$ 19.54
19	5304534663		Ignitor, Bake/broil			Immediately	$ 107.87
21	5304533911		Shield, Bake Bracket		Appelez-nous	-
22	5304535280		Bracket, Holder, Bake Orifice				$ 4.15
23	5304534683		Bracket, Tubing		Appelez-nous	-
24	5304534687		Bracket, Harness		Appelez-nous	-
25	5304534667		Tube, Supply, Regulator, To Safety				$ 12.34
26	5304534673		Tube, Supply, Regulator To, Manifold			Immediately	$ 23.24
27	5304534665		Tube Assembly, Bake Burner				$ 75.69
28	85304534684		Screw, Tube Bracket		Appelez-nous	-
72	316215601		Screw, Valve Mtg., 1/4 - 20, T-20				$ 6.17
10A	530453794		5 Crown, Burner, Medium		Appelez-nous	-
10C	5304537944		Crown, Burner, Small			Immediately	$ 8.56
10D	5304537946		Crown, Burner, Extra Large			Immediately	$ 21.09
11A	5304533853		Ignitor/orifice, Assembly, 10k				$ 14.99
11C	5304533582		Ignitor/orifice, Assembly, 5k Btu, Rh Rear			Immediately	$ 35.14
11D	5304533611		Ignitor/orifice Assembly, 18k, Assembly			Immediately	$ 53.40
12A	5304528309		Tube, Burner, Lh Rear		Appelez-nous	-
12B	5304528315		Tube, Burner, Center		Appelez-nous	-
12C	5304528308		Tube, Burner, Rh Rear		Appelez-nous	-
12D	5304528306		Tube, Burner, Rh Front		Appelez-nous	-
15A	5304533596		Cap, Burner, Medium			Immediately	$ 32.66
15C	5304533595		Cap, Burner, Small			Immediately	$ 28.92
15D	5304533597		Cap, Burner, Xtra Large			Immediately	$ 46.36
2A	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
2C	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2D	5304507282		Valve, Top Burner, Red Stem, 1800btu			Immediately	$ 53.85
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	3203010		Fastener, U-type, (2)				$ 14.89
NIA	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NIA	349098702		Screw, T-20 Trilobe, M4 X 7.5, Regulator		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
