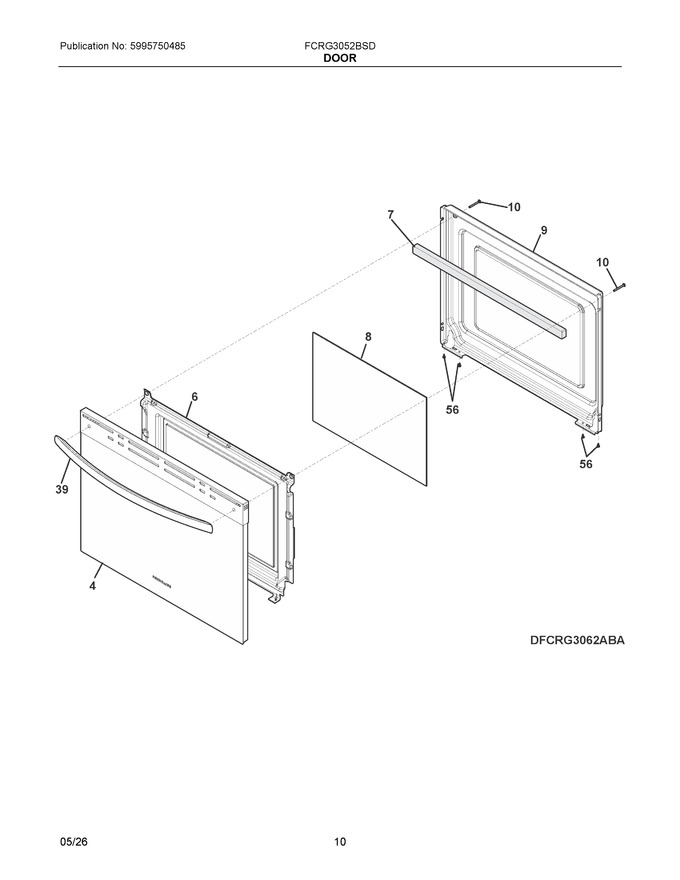

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304534354		Door Assembly, Outer, Glass, Stainless, W/cap-badge				$ 134.94
6	5304526283		Shield, Wool			Immediately	$ 108.77
7	140299178057		Insulation, Door, Top		Appelez-nous	-
8	140163079118		Glass, Door, Inner   (Replaces: 5304538352)			Immediately	$ 53.47
9	5304533925		Liner, Oven Door, Midnight Black			Immediately	$ 85.34
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.				$ 2.28
39	140067504096		Handle-door Ss 30in 2022, 39   (Replaces: 5304535236)				$ 53.48
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NI	316483102		Label, Anti-tip				$ 3.56
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
