SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter

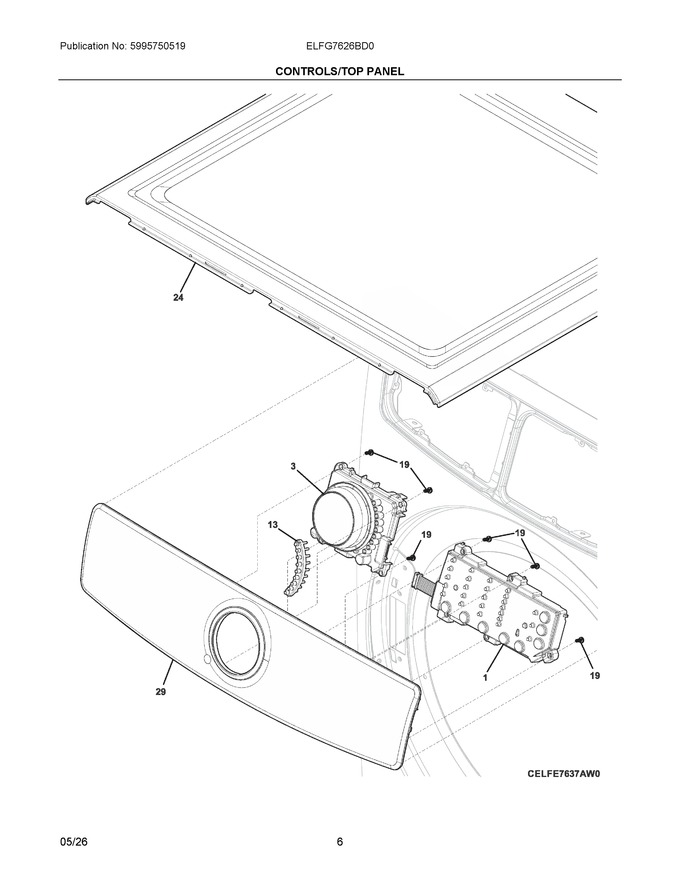

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140288550019		Ui Board, Wo/housing			Immediately	$ 116.64
3	140203380369		Knob Assembly, Programmed		Appelez-nous	-
13	5304529751		Diffuser, Light				$ 15.18
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	140019235153		Work Top, Denim Blue		Appelez-nous	-
29	5304529948		Console Assembly, W/overlay		Appelez-nous	-
54	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
