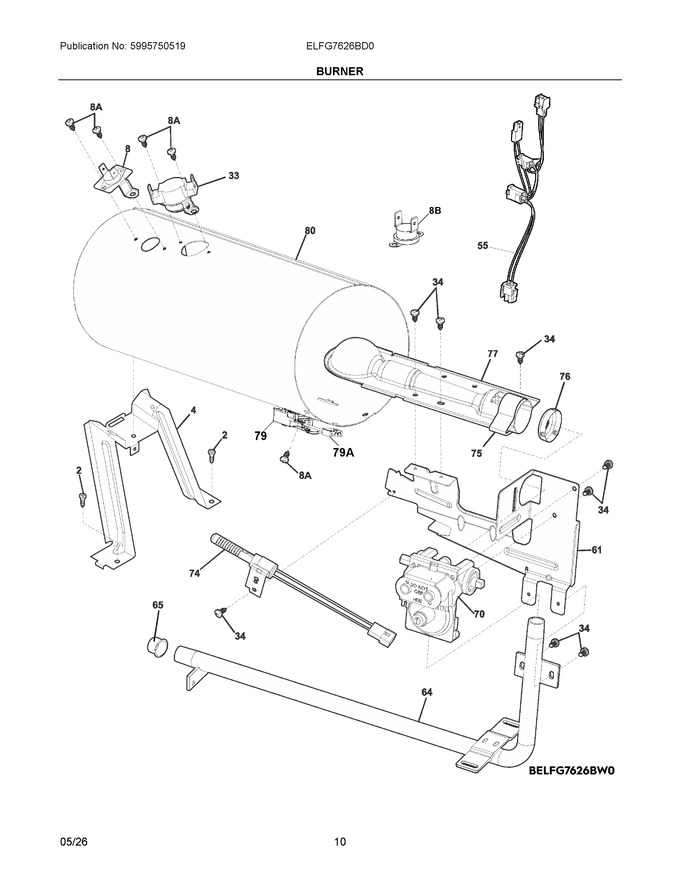

06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134713901		Bracket, Heater/burner, Mounting		Appelez-nous	-
8	137539200		Limiter, Thermal			Immediately	$ 24.39
33	137116700		Thermostat, High Limit			Immediately	$ 40.40
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
55	137029500		Harness, Burner				$ 62.37
61	134715800		Bracket, Gas Valve		Appelez-nous	-
64	140295139012		Pipe, Gas				$ 43.24
65	08015112		Cap, Pipe		Appelez-nous	-
70	4056015433		Gas Valve, Control				$ 116.80
74	137524000		Igniter, Assembly			Immediately	$ 166.55
75	134258500		Shutter, Air				$ 31.90
76	134714401		Collar, Alignment, Gas Valve   (Replaces: 134714400)				$ 11.57
77	134197701		Burner, Gas				$ 44.82
79	5303281135		Sensor, Radiant			Immediately	$ 102.06
80	5304507398		Tube, Exhaust, Extension				$ 66.51
77A	134197700		Burner, Gas				$ 64.49
79A	134259100		Harness, Flame Sensor			Immediately	$ 19.64
8A	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 13.46
8B	134711401		Limiter, Thermal Exhaust, Flush Mount			Immediately	$ 35.48
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
