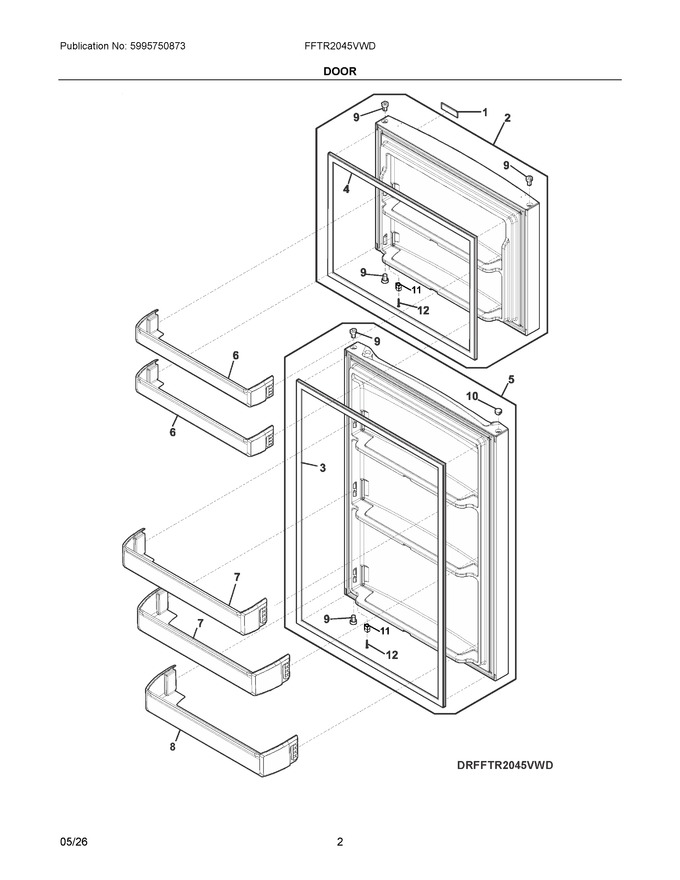

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511144		Badge, Frigidaire, White			Immediately	$ 4.55
2	140210785196		Door Assembly, Freezer, White		Appelez-nous	-
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 205.12
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 180.01
5	140210779199		Door Assembly, Refrigerator, White		Appelez-nous	-
6	5304524054		Bin, Door, White, Freezer				$ 50.61
7	5304524055		Bin, Door, 6", Refrigerator			Immediately	$ 81.06
8	5304536572		Bin, Door, 4", Clear				$ 122.05
9	5304519757		Bearing, Hinge, White			Immediately	$ 7.30
10	5304519747		Cover, Hinge Bearing, White				$ 2.98
11	5304536276		Stopper, Door, White			Immediately	$ 3.77
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
