SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

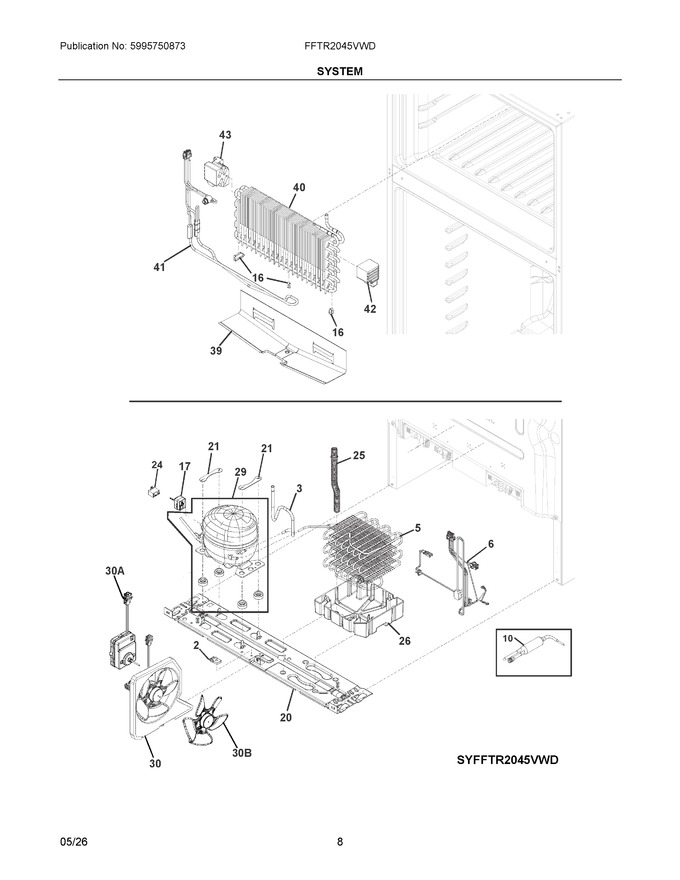

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304537689		Tube-suction, Jumper			Immediately	$ 25.38
5	5304530007		Condenser, Dynamic			Immediately	$ 87.62
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 98.87
10	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
17	5304536666		Starter			Immediately	$ 25.63
20	5304519667		Base Assembly, Compressor, W/rollers			Immediately	$ 64.46
21	5304524607		Clamp, Compressor				$ 2.89
24	297286812		Capacitor, Run, 12uf			Immediately	$ 11.78
25	5304519743		Tube, Drain Extension			Immediately	$ 8.34
26	5304519674		Pan, Drain				$ 39.47
29	5304539722		Compressor, Embraco, Assembly, Esx55cbc G2			Immediately	$ 160.39
30	5304519734		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 156.99
39	5304519679		Trough, Evap Drain				$ 57.64
40	5304522324		Evaporator, 8 Mm   (Replaces: 140148637014)			Immediately	$ 150.10
41	5304522340		Heater, Evap Defrost, W/thermostat			Immediately	$ 88.79
42	5304522326		Support, Evaporator, Rh				$ 7.59
43	5304522327		Support, Evaporator, Lh				$ 7.59
30A	5304539496		Motor, Fan, Condenser				$ 56.33
30B	8582416395027		Blade, Condenser Fan		Appelez-nous	-
NI	240569202		Screw, 8-18 X .500				$ 2.12
NI	5304534034		Screw, Type Ab, #10-16		Appelez-nous	-
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17

    View Diagram in Separate Window       Print Part List
